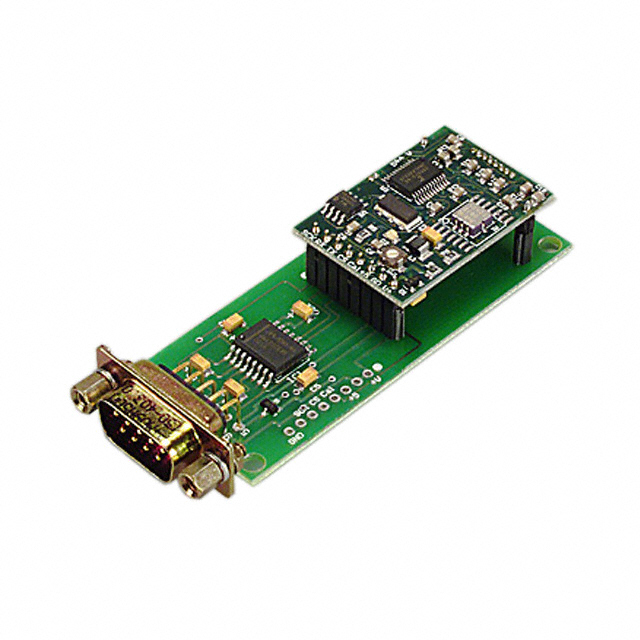

HMR3300-D00-232

Active

Honeywell Aerospace

MODULE DIGITAL COMPASS 3-AXIS

Search across all available documentation for this part.

Active

Honeywell Aerospace

MODULE DIGITAL COMPASS 3-AXIS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 751.24

General part information

±2 Gauss, ±60° Compass X, Y, Z 100µGauss, 0.1° Module (No Case)

Technical documentation and resources

Part	Utilized IC / Part	Interface	Sensing Range [Min]	Sensing Range [Max]	Sensitivity	Sensor Type	Embedded	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range	Resolution [custom]	Resolution [custom]	For Measuring	Axis [z]	Axis [y]	Axis [x]
Honeywell Aerospace HMR3300-DEMO-232	HMR3300	RS-232	-2 g	2 g	0.1 milligauss	Digital Compass, Magnetic		6 V	15 V	Board(s), Cable(s), Power Supply
Honeywell Aerospace HMR3300-D00-232		RS-232									Module (No Case)	Digital Compass	-20 C	70 °C	2 Gauss, 60 °	0.1 °	100 µGauss	Heading, Pitch, Roll	Z	Y	X
