HA0331500000G

Active

AMPHENOL ANYTEK

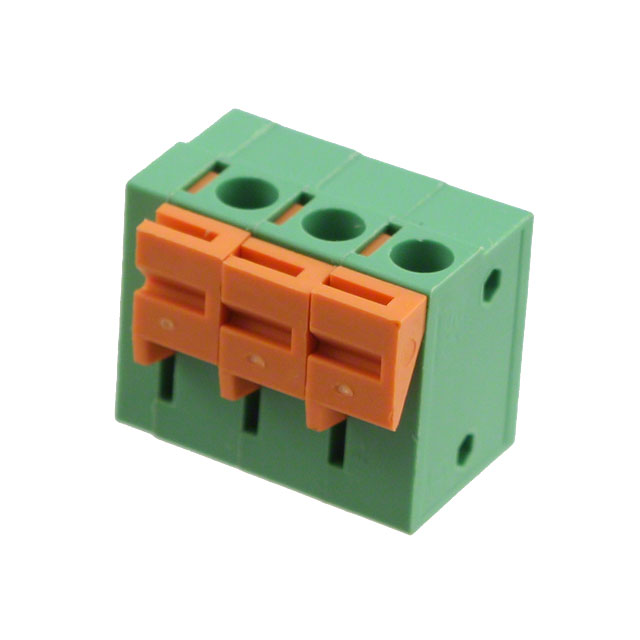

TERM BLK 3POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

HA0331500000G

Active

AMPHENOL ANYTEK

TERM BLK 3POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2100	$ 0.46

Description

General part information

HA03 Series

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HA0331500000G	HA03 Series

Clamp Material - Plating	Stainless, Steel	Stainless, Steel
Color	Green	Green
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Contact Material - Plating	-	Brass - Tin Plated
Current	10 A	2 - 10 A
Features	Lever Actuated	Lever Actuated
Housing Material	Thermoplastic	Thermoplastic, Synthetic Resin
Mating Orientation	Horizontal with Board	Vertical with Board, Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	2.54 - 10 mm
Pitch [x]	0.197 in	0.1 - 0.394 in
Positions Per Level	3	3
Voltage	300 V	150 - 300 V
Wire Gauge [Max]	24 AWG	24 - 26 AWG
Wire Gauge [Min]	14 AWG	14 - 20 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring

HA03 Series

TB, WIRE TO BRD, 3WAY, 16AWG ROHS COMPLIANT: YES

Part	Mating Orientation	Mounting Type	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material - Plating	Features	Number of Levels	Voltage	Pitch [x]	Pitch [x]	Clamp Material - Plating	Housing Material	Current	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Termination	Contact Material - Plating [custom]
AMPHENOL ANYTEK HA0370500000G	Vertical with Board	Through Hole	3	26 AWG	16 AWG	Copper Alloy - Tin Plated	Lever Actuated	1	300 V	0.15 in	3.81 mm	Stainless, Steel	Thermoplastic	6 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring
AMPHENOL ANYTEK HA0340500000G	Vertical with Board	Through Hole	3	24 AWG	14 AWG		Lever Actuated	1	300 V	0.394 in	10 mm	Stainless, Steel	Thermoplastic	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
AMPHENOL ANYTEK HA0321500000G	Horizontal with Board	Through Hole	3	24 AWG	14 AWG		Lever Actuated	1	300 V	0.3 in	7.62 mm	Stainless, Steel	Thermoplastic	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
AMPHENOL ANYTEK HA0331500000G	Horizontal with Board	Through Hole	3	24 AWG	14 AWG	Copper Alloy - Tin Plated	Lever Actuated	1	300 V	0.197 in	5 mm	Stainless, Steel	Thermoplastic	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring
AMPHENOL ANYTEK HA0320500000G	Vertical with Board	Through Hole	3	24 AWG	14 AWG		Lever Actuated	1	300 V	0.3 in	7.62 mm	Stainless, Steel	Synthetic Resin	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
AMPHENOL ANYTEK HA0360500000G	Vertical with Board	Through Hole	3	24 AWG	14 AWG		Lever Actuated	1	300 V	0.295 in	7.5 mm	Stainless, Steel	Thermoplastic	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
AMPHENOL ANYTEK HA0350500000G	Horizontal with Board	Through Hole	3	26 AWG	20 AWG		Lever Actuated	1	150 V	0.1 in	2.54 mm	Stainless, Steel	Thermoplastic	2 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
AMPHENOL ANYTEK HA0361500000G	Horizontal with Board	Through Hole	3	24 AWG	14 AWG		Lever Actuated	1	300 V	0.295 in	7.5 mm	Stainless, Steel	Thermoplastic	10 A	-40 °C	115 °C	Green	Push-In Spring, Screwless - Leg Spring	Brass - Tin Plated
