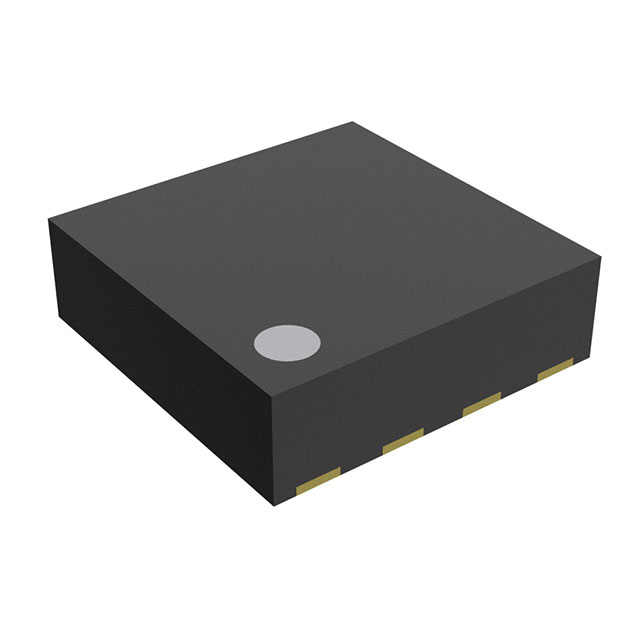

RP505K101B-TR

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 1V 1A 8DFN

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 1V 1A 8DFN

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK 1V 1A 8DFN

Part	Voltage - Input (Max) [Max]	Synchronous Rectifier	Function	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Mounting Type	Voltage - Output (Min/Fixed)	Current - Output	Output Configuration	Output Type	Topology	Frequency - Switching
Nisshinbo Micro Devices Inc RP505K101B-TR	5.5 V		Step-Down	85 °C	-40 °C	1	2.3 V	DFN(PL)2020-8	8-UFDFN Exposed Pad	Surface Mount	1 V	1 A	Positive	1.81 mOhm	Buck	2.25 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 1V 1 Output 1A 8-UFDFN Exposed Pad
