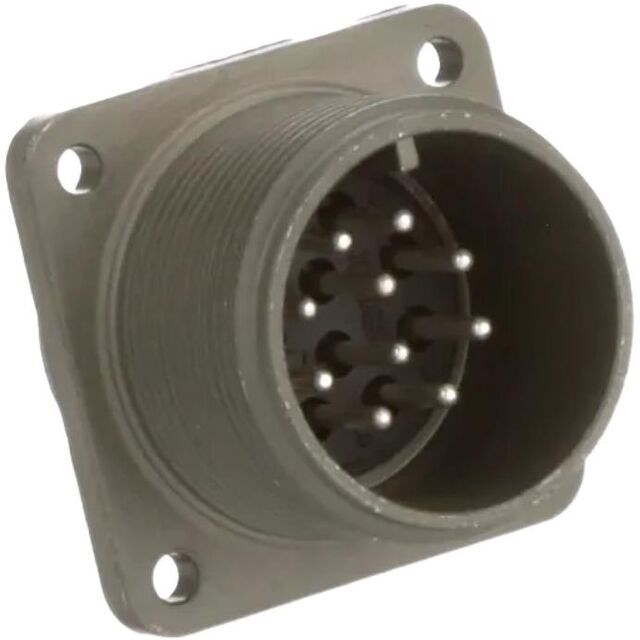

D38999/26FJ11PB
ActiveCorsair
D38999/26FJ11PB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26FJ11PB
ActiveCorsair
D38999/26FJ11PB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26FJ11PB |
|---|---|
| Applications | Aviation, Marine, Military, Aerospace |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 33 A, 7.5 A |
| Features | Coupling Nut, Self Locking |
| Ingress Protection | Environment Resistant, IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 11, 11 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel, Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 25-11 |
| Shell Size, MIL | J |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
D38999/26FJ Series
| Part | Mounting Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Primary Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Shell Finish | Shielding | Shell Size, MIL | Color | Number of Positions [custom] | Number of Positions [custom] | Features | Termination | Orientation | Contact Material | Insert Material | Contact Finish - Mating | Connector Type | Number of Positions | Shell Size - Insert | Material Flammability Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair | Free Hanging (In-Line) | Aluminum | -65 ░C | 200 °C | IP67 - Dust Tight Waterproof | Metal | Aviation Marine Military | 1.27 µm | 50 µin | 7.5 A 13 A 45 A | Nickel | Shielded | J | Silver | 2 | 46 | Coupling Nut | Crimp | C | Copper Alloy | Thermoplastic | Gold | Female Sockets Plug | ||||
Corsair | Free Hanging (In-Line) | Aluminum | -65 ░C | 200 °C | IP67 - Dust Tight Waterproof | Metal | Aviation Marine Military | 1.27 µm | 50 µin | 7.5 A 33 A | Nickel | Shielded | J | Silver | Coupling Nut | Crimp | A | Copper Alloy | Thermoplastic | Gold | Male Pins Plug | 11 | 25-11 | ||||
Corsair | |||||||||||||||||||||||||||
Corsair | Free Hanging (In-Line) | Aluminum | -65 ░C | 200 °C | Environment Resistant IP67 - Dust Tight Waterproof | Metal | Aerospace Aviation Marine Military | 1.27 µm | 50 µin | 7.5 A 33 A | Electroless Nickel Nickel | Shielded | J | Silver | Coupling Nut Self Locking | Crimp | B | Copper Alloy | Thermoplastic | Gold | Male Pins Plug | 11 11 | 25-11 | UL94 V-0 | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 150.96 | |
| 1 | $ 150.96 | |||
| 10 | $ 146.09 | |||
| 10 | $ 146.09 | |||
| 25 | $ 141.53 | |||
| 25 | $ 141.53 | |||
| 50 | $ 139.36 | |||
| 50 | $ 139.36 | |||
| 100 | $ 131.28 | |||
| 100 | $ 131.28 | |||
| 250 | $ 129.40 | |||
| 250 | $ 129.40 | |||
| 500 | $ 124.08 | |||
| 500 | $ 124.08 | |||
| 1000 | $ 120.76 | |||
| 1000 | $ 120.76 | |||
Description
General part information
D38999/26FJ Series
11 Position Circular Connector Plug, Male Pins Crimp
