FPDFF-07B.50

Active

Fraenkische USA, LP

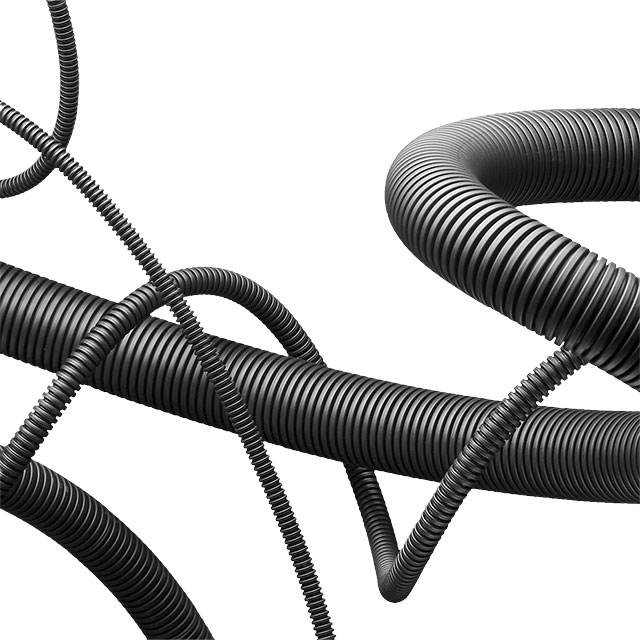

FIPLOCK, PA12 MOD V0, NW07, FINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPDFF-07B.50

Active

Fraenkische USA, LP

FIPLOCK, PA12 MOD V0, NW07, FINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FPDFF-07B.50

Color	Black
Diameter - Inside [diameter]	0.244 in
Diameter - Inside [diameter]	6.2 mm
Diameter - Outside [diameter]	10 mm
Diameter - Outside [diameter]	0.394 in
Environment Protection	UV Resistant, Weather Resistant
Features	Chemical Resistant
Length [x]	50 m
Length [x]	164 ft
Material	Polyamide (PA12), Nylon 12
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-50 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

FPDFF Series

Part	Material Flammability Rating	Type	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length [x]	Length [x]	Color	Environment Protection	Type Attributes	Diameter - Outside	Diameter - Outside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Diameter - Outside [diameter]	Diameter - Inside
Fraenkische USA, LP FPDFF-23B.50	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	0.89 in	22.6 mm	50 m	164 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated	28.4 mm	1.118 in	-50 °C	110 °C	Chemical Resistant
Fraenkische USA, LP FPDFF-12B.50	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	0.472 in	12 mm	50 m	164 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		0.618 in	-50 °C	110 °C	Chemical Resistant	15.7 mm
Fraenkische USA, LP FPDFF-36B.25	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	1.437 in	36.5 mm	25 m	82.02 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		1.669 "	-50 °C	110 °C	Chemical Resistant	42.4 mm
Fraenkische USA, LP FPDFF-48B.25	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	1.87 in	47.5 mm	25 m	82.02 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		2.142 in	-50 °C	110 °C	Chemical Resistant	54.4 mm
Fraenkische USA, LP FPDFF-10B.50	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	0.378 in	9.6 mm	50 m	164 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		0.504 in	-50 °C	110 °C	Chemical Resistant	12.8 mm
Fraenkische USA, LP FPDFF-07B.50	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	0.244 in	6.2 mm	50 m	164 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		0.394 in	-50 °C	110 °C	Chemical Resistant	10 mm
Fraenkische USA, LP FPDFF-29B.50	UL94 V-0	Protective Hose Wire Loom	Polyamide (PA12) Nylon 12	1.142 in		50 m	164 ft	Black	UV Resistant Weather Resistant	Convoluted Corrugated		1.358 in	-50 °C	110 °C	Chemical Resistant	34.49 mm	29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.54
		5	$ 108.32
		10	$ 101.10
		25	$ 96.05
		50	$ 93.88
		100	$ 91.71

Description

General part information

FPDFF Series

Black Polyamide (PA12), Nylon 12 Convoluted, Corrugated Wire Loom, Protective Hose 0.244" (6.20mm) 164' (50.00m)
