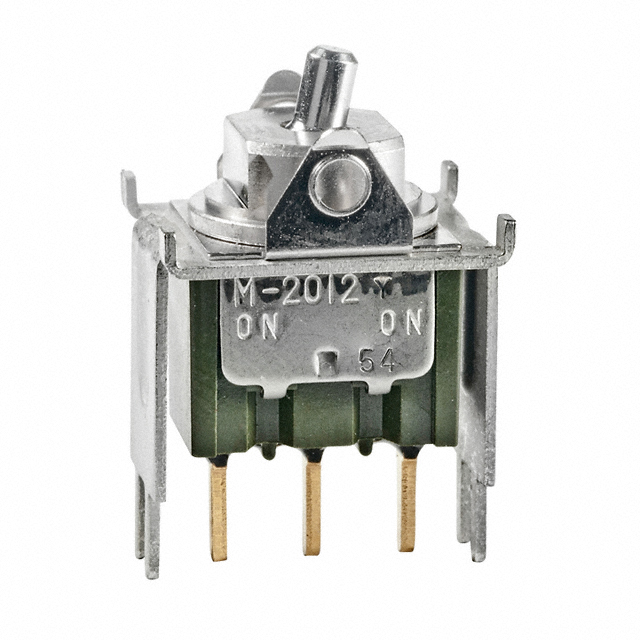

M2012TZG13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012TZG13

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2012TZ Series

Part	Actuator Type	Circuit	Color - Actuator/Cap	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Actuator Marking	Approval Agency	Mounting Type	Features
NKK Switches M2012TZG23-JA	Concave (Standard V)	SPDT	Black	On-On	28 V	28 V	PC Pin	-30 ░C	85 °C	50000 Cycles	0.4 VA	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZG23-JC	Concave (Standard V)	SPDT	Red	On-On	28 V	28 V	PC Pin	-30 ░C	85 °C	50000 Cycles	0.4 VA	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZG13-JB	Concave (Standard V)	SPDT	White	On-On	28 V	28 V	PC Pin	-30 ░C	85 °C	50000 Cycles	0.4 VA	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZW23-JB	Concave (Standard V)	SPDT	White	On-On	30 V	125 V	PC Pin	-30 ░C	85 °C	25000 Steps	4 A 6 A	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZW13	Actuator Arm Cap Required	SPDT		On-On	30 V	125 V	PC Pin	-30 ░C	85 °C	25000 Steps	4 A 6 A	Varies by Cap	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZW13-HA	Paddle	SPDT	Black	On-On	30 V	125 V	PC Pin	-30 ░C	85 °C	25000 Steps	4 A 6 A	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZG23-JB	Concave (Standard V)	SPDT	White	On-On	28 V	28 V	PC Pin	-30 ░C	85 °C	50000 Cycles	0.4 VA	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZG13	Actuator Arm Cap Required	SPDT		On-On	28 V	28 V	PC Pin	-30 ░C	85 °C	50000 Cycles	0.4 VA	Varies by Cap	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZW23/UC-JA	Concave (Standard V)	SPDT	Black	On-On		125 V	PC Pin	-30 ░C	85 °C	25000 Steps	6 A	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals
NKK Switches M2012TZW23/U-JB	Concave (Standard V)	SPDT	White	On-On		125 V	PC Pin	-30 ░C	85 °C	25000 Steps	6 A	No Marking	CSA UL	Through Hole	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.13

Description

General part information

M2012TZ Series

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
