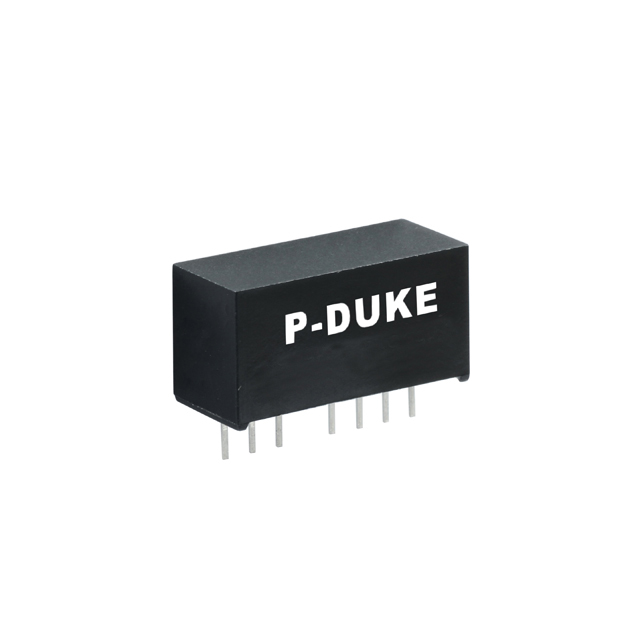

EDL03-24S05W

Active

P-DUKE Technology

DC DC CONVERTER 5V 3W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 5V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 3W

Part	Voltage - Isolation	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Voltage - Output 1	Approval Agency	Type	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Efficiency	Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
P-DUKE Technology EDL03-24S05W	1.6 kV	1	Through Hole	600 mA	-40 °C	105 C	8-SIP Module	7 Leads	5 V	CE	Isolated Module	36 V	3 W	ITE (Commercial)	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	9 V	80 %	Remote On/Off
P-DUKE Technology EDL03-24D15	1.6 kV	2	Through Hole		-40 °C	105 C	8-SIP Module	7 Leads	15 V	CE	Isolated Module	36 V	3 W	ITE (Commercial)	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	18 V	85 %	Remote On/Off	-15 V	100 mA	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
