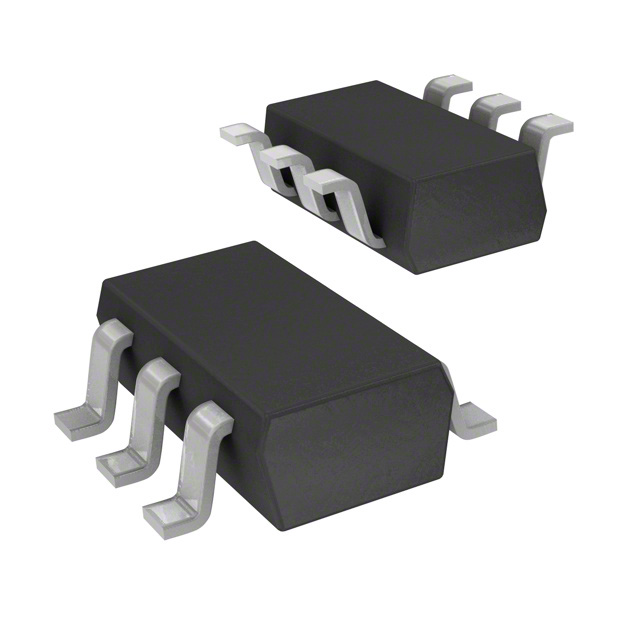

CDSOT236-T05

Active

Bourns Inc.

TVS DIODE 5VWM 21VC SOT23-6

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 5VWM 21VC SOT23-6

Technical Specifications

Parameters and characteristics for this part

Specification	CDSOT236-T05

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	17 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-6
Power - Peak Pulse	350 W
Power Line Protection	False
Supplier Device Package	SOT-23-6
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	21 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Package / Case	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Supplier Device Package	Applications	Power - Peak Pulse	Mounting Type	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Unidirectional Channels [custom]	Unidirectional Channels	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. CDSOT236-T15C	SOT-23-6	34.6 V	16.7 V	10 A	5	SOT-23-6	General Purpose	350 W	Surface Mount	15 V	-55 °C	150 °C	Zener
Bourns Inc. CDSOT236-0504LC	SOT-23-6	8.1 V	6 V	4.7 A		SOT-23-6	HDMI USB OTG		Surface Mount	5 V	-55 C	85 C	Steering	4
Bourns Inc. CDSOT236-DSL0312	SOT-23-6		14 V			SOT-23-6	General Purpose	500 W	Surface Mount	12 V	-40 °C	125 ¯C	Steering		2	34 V
Bourns Inc. CDSOT236-T05	SOT-23-6		6 V	17 A		SOT-23-6	General Purpose	350 W	Surface Mount	5 V	-55 °C	150 °C	Zener	4		21 V
Bourns Inc. CDSOT236-0504C	SOT-23-6		6 V			SOT-23-6	HDMI		Surface Mount	5 V	-55 C	85 C	Steering	4		10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

21V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
