Description

General part information

MIC29151 Series

The MIC29150/29300/29500/29750 are high-current, high-accuracy, low-dropout voltage regulators. Using proprietary Super βeta PNP® process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high-current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes.

The MIC29150/29300/29500/29750 are fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, over-temperature operation, and positive and negative transient voltage spikes. Five-pin fixed voltage versions feature logic-level on/off control and an error flag which signals whenever the output falls out of regulation. Flagged states include low input voltage (dropout), output current limit, over-temperature shutdown, and extremely high voltage spikes on the input.

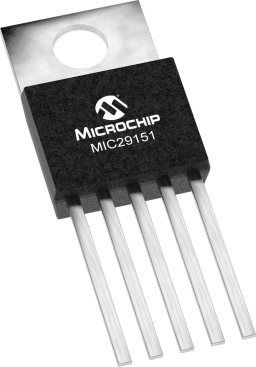

On the MIC29xx1 and MIC29xx2, the enable pin may be tied to VIN if it is not required for on/off control. The MIC29150/29300/29500 are available in 3-pin and 5-pin TO-220 and surface-mount TO-263 (D2Pak) packages.

Technical Specifications

Parameters and characteristics for this part

Specification	MIC29151-3.3WU-TR

Control Features	Enable
Current - Output	1.5 A
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package Leads	5 Leads
Package Name	TO-263-5, D2PAK
Protection Features	Transient Voltage, Reverse Polarity, Over Current, Over Temperature
Voltage - Input (Max)	26 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max)	0.6 V

MIC29151 Series

1.5A LDO Fixed Voltage + Flag + Shutdown

Part	Control Features	Voltage - Output (Min/Fixed)	Number of Regulators	Voltage - Input (Max)	Package Name	Output Configuration	Voltage Dropout (Max)	Package / Case	Current - Output	Protection Features	Output Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads
Microchip Technology MIC29151-3.3WT	Enable	3.3 V	1	26 V	TO-220-5	Positive	0.6 V	TO-220-5	1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Through Hole	125 °C	-40 °C
Microchip Technology MIC29151-5.0WU-TR	Enable	5 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-12BU TR	Enable	12 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-12WT	Enable	12 V	1	26 V	TO-220-5	Positive	0.6 V	TO-220-5	1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Through Hole	125 °C	-40 °C
Microchip Technology MIC29151-12BT	Enable	12 V	1	26 V	TO-220-5	Positive	0.6 V	TO-220-5	1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Through Hole	125 °C	-40 °C
Microchip Technology MIC29151-3.3WU	Enable	3.3 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-3.3WU-TR	Enable	3.3 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-5.0WU	Enable	5 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-3.3BU TR	Enable	3.3 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
Microchip Technology MIC29151-5.0BU TR	Enable	5 V	1	26 V	D2PAK TO-263-5	Positive	0.6 V		1.5 A	Over Current Over Temperature Reverse Polarity Transient Voltage	Fixed	Surface Mount	125 °C	-40 °C	5 Leads
