2702488

Active

Phoenix Contact

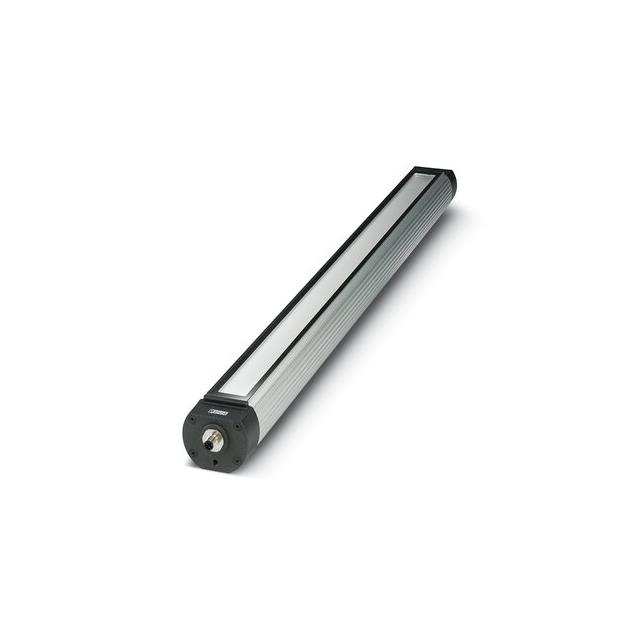

LED MOD COOL WHT RECT 5000K

Search across all available documentation for this part.

Active

Phoenix Contact

LED MOD COOL WHT RECT 5000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 613.25

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2702488	27024 Series

CCT (K)	5000 K	5000 - 6500 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	85	65 - 85
Features	IP67, With Connector	IP67, With Connector, IPX9
Height [z]	58 mm	20 - 58 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	2300 lm	300 - 3200 lm
Size / Dimension [x]	790 mm	190 - 1176 mm
Size / Dimension [y]	70 mm	22.5 - 74 mm
Type	LED Module	LED Module
Viewing Angle	75 °, 95 °	75 - 105 °
Viewing Angle	-	40 °

LED MOD COOL WHT RECT 5000K

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lens Type	Features	Height [z]	Color	Type	CCT (K)	Viewing Angle	Configuration	Viewing Angle [custom]
Phoenix Contact 2702489	70 mm	1070 mm	85	3200 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702482	40 mm	540 mm	80	1680 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle
Phoenix Contact 2702479	22.5 mm	1176 mm	75	1200 lm	Flat	IP67	23 mm	Cool, White	LED Module		95 °, 105 °	Rectangle
Phoenix Contact 2702477	22.5 mm	616 mm	75	600 lm	Flat	IP67	23 mm	Cool, White	LED Module		95 °, 105 °	Rectangle
Phoenix Contact 2702488	70 mm	790 mm	85	2300 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702483	40 mm	715 mm	80	2280 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle
Phoenix Contact 2702486	70 mm	650 mm	85	1800 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702484	70 mm	370 mm	85	900 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702491	74 mm	284 mm	65	460 lm	Flat	IP67, IPX9	20 mm	Cool, White	LED Module	6500 K		Rectangle	40 °
Phoenix Contact 2702481	40 mm	365 mm	80	1080 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle
