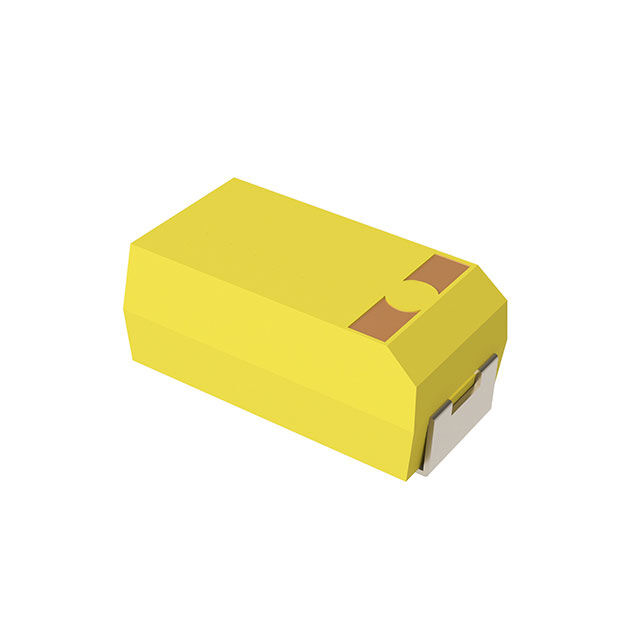

T498A335K016ATE3K4
ActiveKEMET
CAPACITOR,3.3UF,16VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
T498A335K016ATE3K4
ActiveKEMET
CAPACITOR,3.3UF,16VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T498A335K016ATE3K4 |
|---|---|
| Capacitance | 3.3 µF |
| ESR (Equivalent Series Resistance) | 3.4 Ohm |
| Features | Automotive |
| Grade | Automotive |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Qualification | AEC-Q200 |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.35 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 2000 | $ 0.17 | ||
| 4000 | $ 0.16 | |||
| 6000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
| 14000 | $ 0.15 | |||
| 20000 | $ 0.14 | |||
| 50000 | $ 0.14 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.21 | |
| 5000 | $ 0.19 | |||
| 10000 | $ 0.17 | |||
| 20000 | $ 0.15 | |||
| 30000 | $ 0.14 | |||
| 50000 | $ 0.13 | |||
Description
General part information
T498A Series
3.3 µF Molded Tantalum Capacitors 16 V 1206 (3216 Metric) 3.4Ohm @ 100kHz
