583859-7
ActiveTE Connectivity Raychem Cable Protection

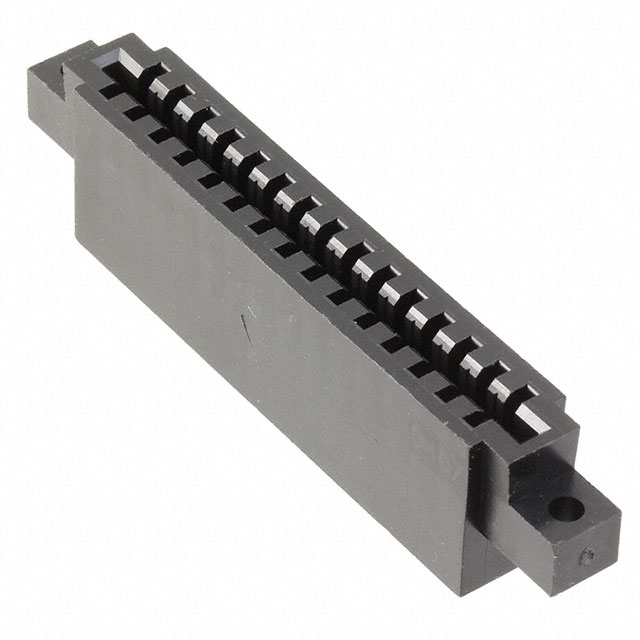

HOUSING CSTL 156 C/L 15 POS
Deep-Dive with AI
Search across all available documentation for this part.
583859-7
ActiveTE Connectivity Raychem Cable Protection
HOUSING CSTL 156 C/L 15 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 583859-7 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 0.055 in |
| Card Thickness [Min] | 1.4 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Features | Flange |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Material - Insulation | Polyester Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.91 | |
Description
General part information
AMP CST-100 Series
Housing, Receptacle, Wire-to-Board, 15 Position, 3.96 mm [.156 in] Centerline, Crimp, 2 Row, Black, Printed Circuit Board, Power & Signal, AMP CST-100
