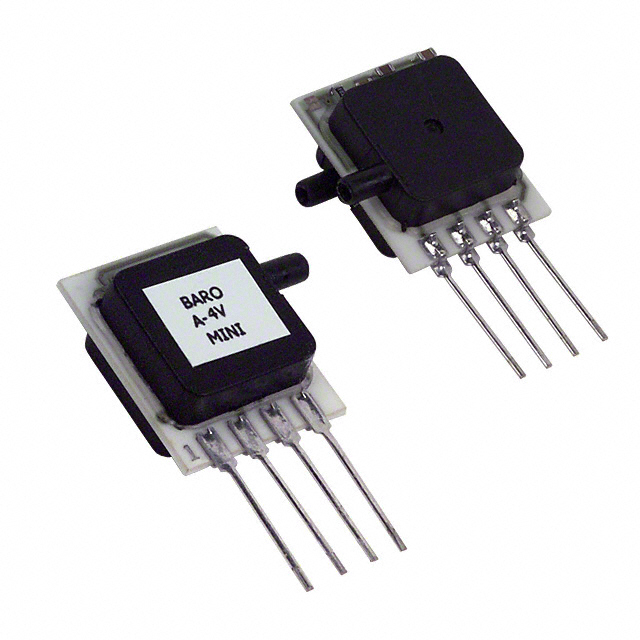

BARO-A-4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 15.95PSIA 0.08" 4.25V

Deep-Dive with AI

Search across all available documentation for this part.

BARO-A-4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 15.95PSIA 0.08" 4.25V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 40.54

Description

General part information

BARO-A Series

Pressure Sensor 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) Absolute Male - 0.08" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BARO-A-4V-MINI	BARO-A Series

Accuracy	2 %	2 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated, Amplified Output	Temperature Compensated, Amplified Output
Maximum Pressure	-	45 - 60 PSI
Maximum Pressure	-	310.26 - 413.69 kPa
Mounting Type	Through Hole	Through Hole
Operating Pressure [Max]	15.95 PSI	15.95 PSI
Operating Pressure [Max]	110 kPa	110 kPa
Operating Pressure [Min]	8.7 PSI	8.7 PSI
Operating Pressure [Min]	0.6 bar	0.6 bar
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Output [Max]	4.25 V	4.25 - 95.7 V
Output [Min]	0.25 V	0 - 52.2 V
Output Type	Analog Voltage	Analog Voltage, Wheatstone Bridge
Package / Case	4-SIP Module	4-SIP Module, 4-SIP
Port Size	-	Male, Dual, Tube
Port Size [x]	2.03 mm	2.03 - 4.83 mm
Port Size [x]	0.08 "	0.08 - 0.19 "
Port Style	Barbless	Barbless, No Port
Termination Style	PC Pin	PC Pin
Voltage - Supply	-	16 VDC
Voltage - Supply [Max]	5.5 V	5.5 - 16 V
Voltage - Supply [Min]	4.5 V	4.5 - 5.5 V

BARO-A Series

SENSOR 15.95PSIA 0.08" 4.25V

Part	Port Size [x]	Port Size [x]	Port Style	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Package / Case	Features	Output [Min]	Output [Max]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Mounting Type	Port Size	Voltage - Supply
Amphenol All Sensors Corporation BARO-A-4V-PRIME	2.03 mm	0.08 "	Barbless	Board Mount	125 °C	-40 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP Module	Amplified Output, Temperature Compensated	0.25 V	4.25 V	Analog Voltage	4.5 V	5.5 V	PC Pin	2 %	60 PSI	413.69 kPa	Through Hole
Amphenol All Sensors Corporation BARO-A-4V-MIL	4.83 mm	0.19 "	Barbless	Board Mount	125 °C	-40 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP Module	Amplified Output, Temperature Compensated	0.25 V	4.25 V	Analog Voltage	4.5 V	5.5 V	PC Pin	2 %	60 PSI	413.69 kPa	Through Hole	Dual, Male, Tube
Amphenol All Sensors Corporation BARO-A-4V-MINI-PRIME	2.03 mm	0.08 "	Barbless	Board Mount	85 °C	-25 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP Module	Amplified Output, Temperature Compensated	0.25 V	4.25 V	Analog Voltage	4.5 V	5.5 V	PC Pin	2 %			Through Hole
Amphenol All Sensors Corporation BARO-A-4V-PRIME-REF	4.83 mm	0.19 "	Barbless	Board Mount	125 °C	-40 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP	Temperature Compensated	0 mV	4.25 V	Analog Voltage	5.5 V	16 V		2 %	60 PSI	413.69 kPa	Through Hole	Dual, Male, Tube
Amphenol All Sensors Corporation BARO-A-4V-REF-PRIME	4.83 mm	0.19 "	Barbless	Board Mount	125 °C	-40 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP	Temperature Compensated	0 mV	4.25 V	Analog Voltage	5.5 V	16 V		2 %	60 PSI	413.69 kPa	Through Hole	Dual, Male, Tube
Amphenol All Sensors Corporation BARO-A-PRIME-MINI			No Port	Board Mount	85 °C	-25 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP Module	Temperature Compensated	52.2 mV	95.7 mV	Wheatstone Bridge			PC Pin	2 %	45 PSI	310.26 kPa	Through Hole		16 VDC
Amphenol All Sensors Corporation BARO-A-4V-MINI	2.03 mm	0.08 "	Barbless	Board Mount	85 °C	-25 °C	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	4-SIP Module	Amplified Output, Temperature Compensated	0.25 V	4.25 V	Analog Voltage	4.5 V	5.5 V	PC Pin	2 %			Through Hole
