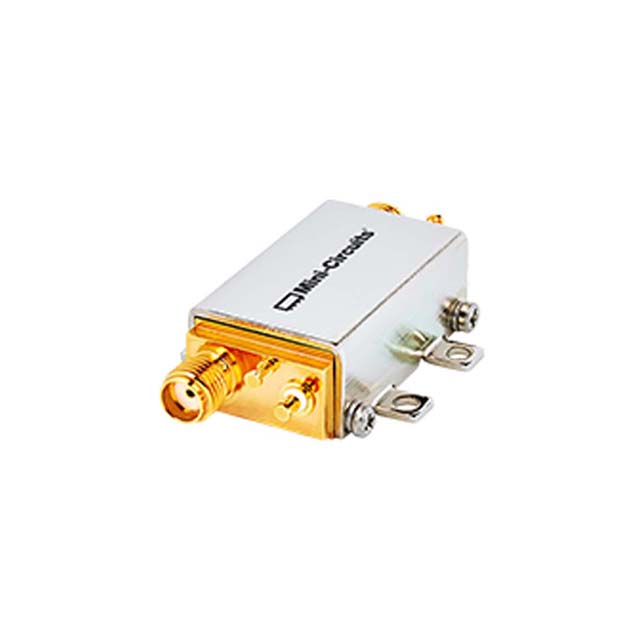

ZX60-53LNB-S+

Active

MINI-CIRCUITS

IC RF AMP GPS 500MHZ-5GHZ SMA

Search across all available documentation for this part.

Active

MINI-CIRCUITS

IC RF AMP GPS 500MHZ-5GHZ SMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC General Purpose 500MHz ~ 5GHz

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ZX60-53LNB-S+	ZX60 Series

Current - Supply	95 mA	34 - 280 mA
Current - Supply	-	60 mA
Current - Supply	-	70 mA
Frequency [Max]	5 GHz	1.6 - 2500 GHz
Frequency [Min]	500 MHz	1.71 - 824 GHz
Gain	17.9 dB	6.9 - 39 dB
Mounting Type	Chassis Mount	Chassis Mount
Noise Figure	1.63 dB	0.55 - 7.7 dB
P1dB	21 dBm	10.8 - 30 dBm
Package / Case	Module, SMA Connectors	Module, SMA Connectors
RF Type	General Purpose	DBS, Radar, LTE, WiFi, UMTS, WLAN, WiMax, Cellular, GPS, Bluetooth, MMDS, Wireless LAN, PCS, CATV, General Purpose, PCN, GSM, CDMA, SATCOM, LTE, PCS
Test Frequency	1 GHz	1 - 900 GHz
Test Frequency	-	1.3 - 300 GHz
Test Frequency	-	1.9 - 100 GHz
Voltage - Supply	-	5 - 12 V
Voltage - Supply [Max]	5.2 V	5 - 13 V
Voltage - Supply [Min]	4.8 V	2.8 - 11 V

IC RF AMP DBS 6GHZ-18GHZ SMA

Part	Voltage - Supply	Mounting Type	Package / Case	Current - Supply	Noise Figure	Test Frequency	P1dB	RF Type	Frequency [Max]	Frequency [Min]	Gain	Voltage - Supply [Min]	Voltage - Supply [Max]	Test Frequency [Min]	Test Frequency [Max]
MINI-CIRCUITS ZX60-183-S+	5.5 V	Chassis Mount	Module, SMA Connectors	260 mA	6.5 dB	10 GHz	18.5 dBm	DBS, Radar	18 GHz	6 GHz	24 dB
MINI-CIRCUITS ZX60-123LN-S+	12 VDC	Chassis Mount	Module, SMA Connectors	82 mA	3.1 dB	2 GHz	16.5 dB	LTE, Radar, UMTS, WiFi, WiMax, WLAN	12 GHz	500 MHz	18.4 dB
MINI-CIRCUITS ZX60-33LNR-S+		Chassis Mount	Module, SMA Connectors	70 mA	1.1 dB		19 dBm	Bluetooth, Cellular, GPS			11.4 dBi
MINI-CIRCUITS ZX60-V81-S+		Chassis Mount	Module, SMA Connectors	103 mA		2 GHz	19.5 dBm	CATV, DBS, LTE, MMDS, PCS, Wireless LAN	6 GHz	20 MHz	7 dBi	4.8 V	5.2 V
MINI-CIRCUITS ZX60-53LNB-S+		Chassis Mount	Module, SMA Connectors	95 mA	1.63 dB	1 GHz	21 dBm	General Purpose	5 GHz	500 MHz	17.9 dB	4.8 V	5.2 V
MINI-CIRCUITS ZX60-24A-S+		Chassis Mount	Module, SMA Connectors	270 mA	7.2 dBm	18 GHz	19.4 dBm	DBS, Radar			24.4 dB
MINI-CIRCUITS ZX60-242GLN-S+		Chassis Mount	Module, SMA Connectors	120 mA	0.9 dB		21 dBm		2.4 GHz	1.71 GHz	28 dBi			2.2 GHz	2.4 GHz
MINI-CIRCUITS ZX60-272LN-S+		Chassis Mount	Module, SMA Connectors	55 mA	0.8 dB		18.5 dBm	WiMax	2.7 GHz	2.3 GHz	14 dBi			2.3 GHz	2.7 GHz
MINI-CIRCUITS ZX60-8008E-S+		Chassis Mount	Module, SMA Connectors	39 mA	4.1 dB	20 MHz	10.8 dBm	Cellular, PCS			7 dBi
MINI-CIRCUITS ZX60-2531MA-S+		Chassis Mount	Module, SMA Connectors	102 mA	3.1 dB	500 MHz	19 dBm	Cellular, PCN	2500 GHz	500 MHz	37 dB	2.8 V	5 V
