RT9114BGQV
ActiveRichtek USA Inc.
IC REG AUDIO AMP 2-CH 28VQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT9114BGQV
ActiveRichtek USA Inc.
IC REG AUDIO AMP 2-CH 28VQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT9114BGQV |
|---|---|
| Max Output Power x Channels @ Load | 20 W, 8 Ohm, 2 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 2-Channel (Stereo) |

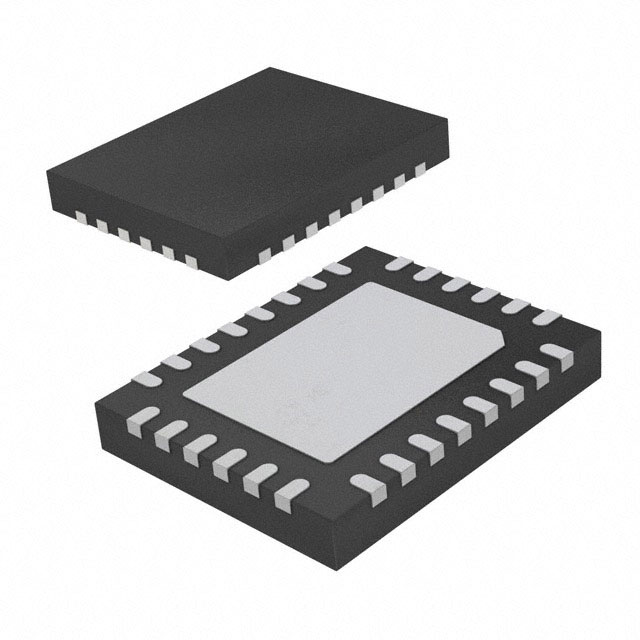

| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN (4x5) |
| Type | Class D |
| Voltage - Supply [Max] | 3.6 V, 26.4 V |
| Voltage - Supply [Min] | 3 V, 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.65 | |
| 10 | $ 6.01 | |||
| 25 | $ 5.73 | |||
| 100 | $ 4.98 | |||
| 250 | $ 4.75 | |||
| 500 | $ 4.33 | |||
| Digi-Reel® | 1 | $ 6.65 | ||
| 10 | $ 6.01 | |||
| 25 | $ 5.73 | |||
| 100 | $ 4.98 | |||
| 250 | $ 4.75 | |||
| 500 | $ 4.33 | |||
| Tape & Reel (TR) | 1500 | $ 1.27 | ||
| 3000 | $ 1.20 | |||
| 4500 | $ 1.17 | |||
| 7500 | $ 1.13 | |||
Description
General part information
RT9114 Series
Amplifier IC 2-Channel (Stereo) Class D 28-VQFN (4x5)
