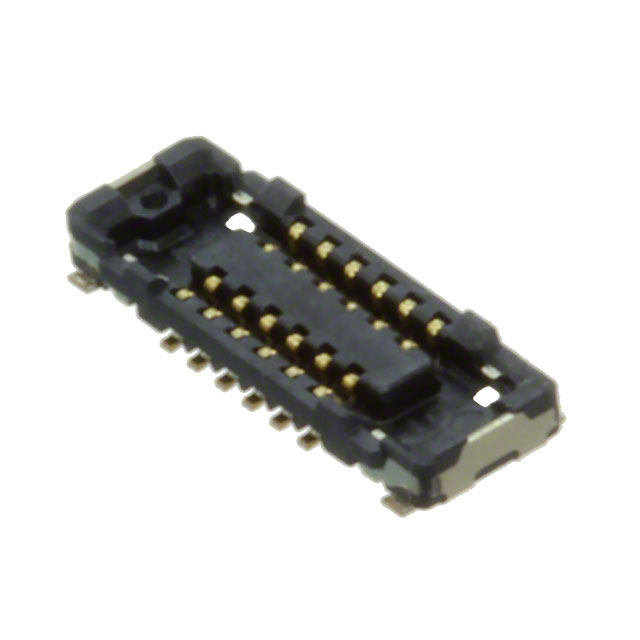

AXG112224A

Active

Panasonic Electric Works

CONN SOCKET 12POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 12POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG112224A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.8 mm
Height Above Board [z]	0.031 in
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Connector Type	Contact Finish	Number of Positions	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights
Panasonic Electric Works AXG112224A	Socket Center Strip Contacts	Gold	12	Surface Mount	Solder Retention	4 Áin	0.1 Ám	2	0.8 mm	0.031 in	0.35 mm	0.014 in	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Connector Socket, Center Strip Contacts Surface Mount Gold
