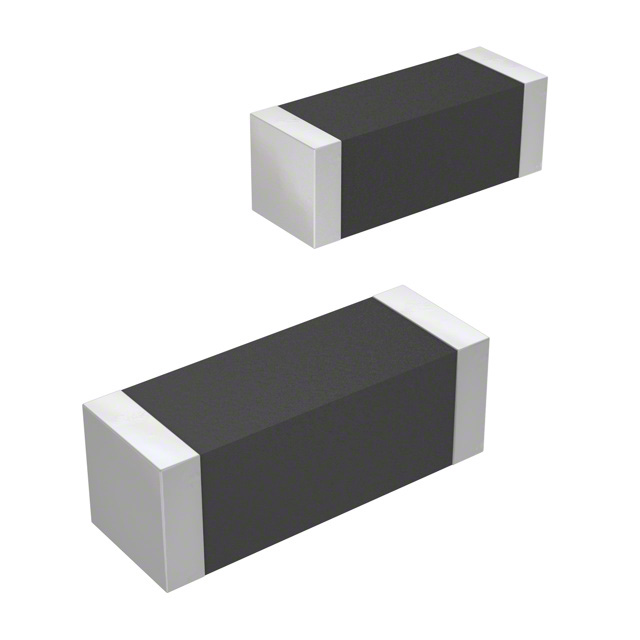

MH4516-750Y
ObsoleteBourns Inc.
FERRITE BEAD 75 OHM 1806 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MH4516-750Y
ObsoleteBourns Inc.
FERRITE BEAD 75 OHM 1806 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MH4516-750Y |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) | 25 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) [Max] | 0.071 in |
| Height (Max) [Max] | 1.8 mm |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1806 (4516 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MH4516 Series
75 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1806 (4516 Metric) 3A 25mOhm
