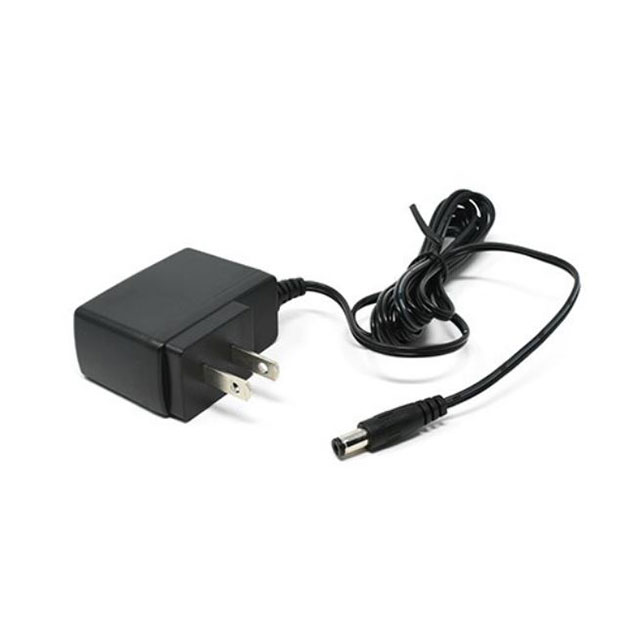

PEAW12NA-14-B1

Active

TT Electronics/Power Partners Inc.

AC/DC WALL MOUNT ADAPTER 24V 12W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC WALL MOUNT ADAPTER 24V 12W

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 24V 12W

Part	Applications	Voltage - Output	Input Type	Power (Watts)	Cord Length	Cord Length	Approval Agency	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Polarization	Standard Number	Efficiency	Form	Region Utilized	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
TT Electronics/Power Partners Inc. PEAW12NA-14-B1	ITE (Commercial)	24 V	Fixed Blade	12 W	70.9 in	1.8 m	CB, CE, cULus, FCC, TUV	500 mA	90 VAC	264 VAC	NEMA 1-15P	Positive Center	60950-1, 62368-1	Level VI	Wall Mount (Class II)	North America	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	60 °C	0 °C	100 mW	1.61 "	23.9 mm	2.12 "	0.94 in	53.8 mm	40.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
