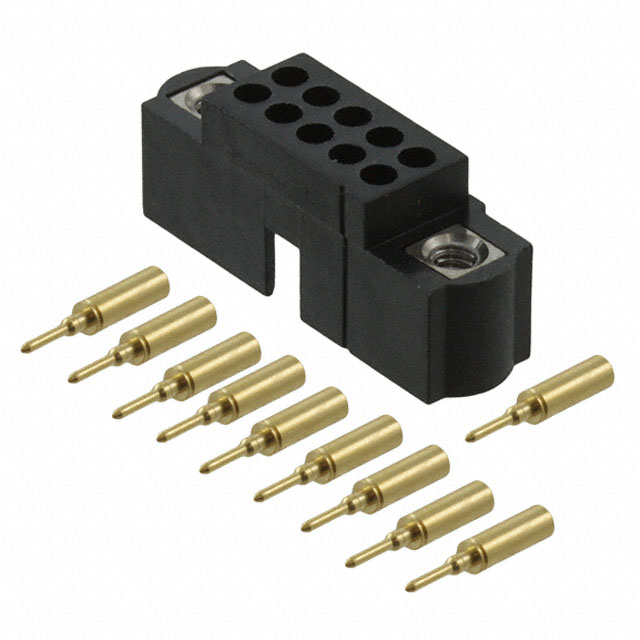

M80-5651005

Active

Harwin Inc.

5+5 POS. MALE DIL 22AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

5+5 POS. MALE DIL 22AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Row Spacing	Row Spacing	Features	Wire Type	Number of Positions	Wire Gauge	Cable Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Number of Rows	Color	Mounting Type	Contact Finish
Harwin Inc. M80-5651005	2 mm	0.079 in	Jackscrews	Discrete	10	22 AWG	Crimp	0.079 in	2 mm	10 Áin	0.25 Ám	Header	Male Pin	2	Black	Free Hanging (In-Line)	Gold
Harwin Inc. M80-5652605	2 mm	0.079 in	Jackscrews	Discrete	26	22 AWG	Crimp	0.079 in	2 mm	10 Áin	0.25 Ám	Header	Male Pin	2	Black	Free Hanging (In-Line)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 10.56
Newark	Each	1000	$ 10.94
		2500	$ 10.70

General part information

10 Position Rectangular Header Connector Crimp Gold 22 AWG
