RT07142SNH

Active

Amphenol Sine Systems Corp

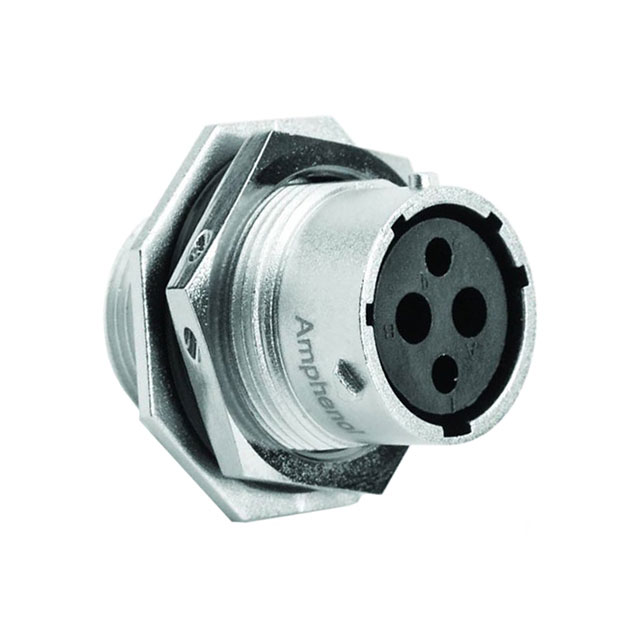

CONN RCPT HSNG FMALE 4POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019

RT07142SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT07142SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	14-2
Shielding	Shielded
Type	For Female Sockets

RT07142 Series

Part	Type	Connector Type	Shell Finish	Contact Type	Mounting Feature	Insert Material	Shell Size - Insert	Shielding	Ingress Protection	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Note	Includes	Material Flammability Rating	Fastening Type	Shell Material	Orientation	Contact Shape	Primary Material	Features
Amphenol Sine Systems Corp RT07142SNH03	For Female Sockets	Receptacle Housing	Nickel	Crimp	Bulkhead - Front Side Nut	Thermoplastic	14-2	Shielded	IP67 - Dust Tight Waterproof	4	125 °C	-40 °C	Silver	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	UL94 V-0	Bayonet Lock	Zinc Alloy	N	Circular
Amphenol Sine Systems Corp RT07142PNHEC03	For Male Pins	Receptacle Housing	Nickel	Crimp	Bulkhead - Front Side Nut	Thermoplastic	14-2	Shielded	IP67 - Dust Tight Waterproof	4	125 °C	-40 °C	Silver	Contacts Not Included		UL94 V-0	Bayonet Lock	Zinc Alloy	N	Circular	Metal	Cap (Cover)
Amphenol Sine Systems Corp RT07142SNH	For Female Sockets	Receptacle Housing	Nickel	Crimp	Bulkhead - Front Side Nut	Thermoplastic	14-2	Shielded	IP67 - Dust Tight Waterproof	4	105 ░C	-40 °C	Silver	Contacts Not Included		UL94 V-0	Bayonet Lock	Zinc Alloy	N	Circular
Amphenol Sine Systems Corp RT07142PNH03	For Male Pins	Receptacle Housing	Nickel	Crimp	Bulkhead - Front Side Nut	Thermoplastic	14-2	Shielded	IP67 - Dust Tight Waterproof	4	125 °C	-40 °C	Silver	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	UL94 V-0	Bayonet Lock	Zinc Alloy	N	Circular
Amphenol Sine Systems Corp RT07142PNH	For Male Pins	Receptacle Housing	Nickel	Crimp	Bulkhead - Front Side Nut	Thermoplastic	14-2	Shielded	IP67 - Dust Tight Waterproof	4	105 ░C	-40 °C	Silver	Contacts Not Included		UL94 V-0	Bayonet Lock	Zinc Alloy	N	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.31
		10	$ 11.54
		25	$ 11.16

Description

General part information

RT07142 Series

4 Position Circular Connector Receptacle Housing Panel Mount
