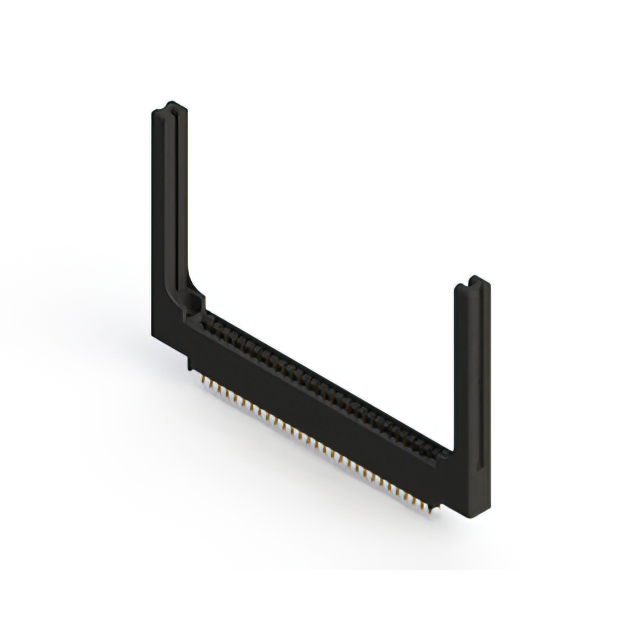

396-058-556-858
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-058-556-858
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-058-556-858 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
396-058 Series
...
| Part | Mounting Type | Number of Positions/Bay/Row | Material - Insulation | Color | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination Rows | Card Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Rows | Contact Material | Contact Type | Contact Finish | Flange Feature | Flange Feature | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole Right Angle | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | ||||||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | 3.25 mm | 0.128 in | Card Extender | Side Mount Opening Unthreaded | ||
EDAC Inc. | Through Hole | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | Card Extender | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | Through Hole Right Angle | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Through Hole | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Board Edge Straddle Mount | 29 | Polyester Thermoplastic | Black | 58 | -40 °C | 105 ░C | Female | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Copper Alloy | Cantilever | Gold | Card Extender | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
396-058 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
