General part information

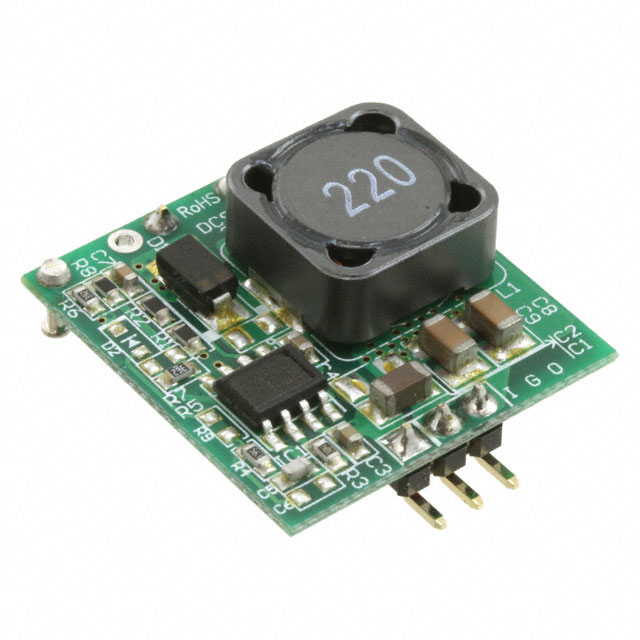

Non-Isolated DC/DC Converters 8-42VIN 5V 1A SIP3 23x29.4x8mm
Technical documentation and resources
Parameters and characteristics for this part
| Specification | R-78T5.0-1.0/AL-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 92 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 0.98 " |
| Size / Dimension [x] | 25 mm |
| Size / Dimension [y] | 0.91 in |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 | 5 V |
Non-Isolated DC/DC Converters 8-42VIN 5V 1A SIP3 23x29.4x8mm
| Part | Type | Current - Output (Max) [Max] | Features | Efficiency | Power (Watts) | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Applications | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-78T5.0-1.0/AL-R | Non-Isolated PoL Module | 1 A | SCP | 92 % | 5 W | 1 | 0.91 in | 10 mm | 0.39 in | 0.98 " | 23 mm | 25 mm | ITE (Commercial) | Surface Mount | 8 V | 42 V | 5 V | 85 °C | -40 °C |
