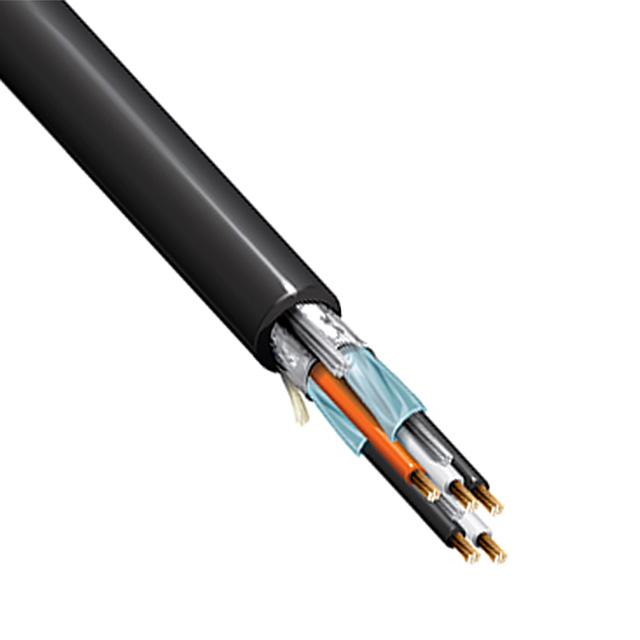

1075A 0104000

Active

Belden Inc.

MULTI-PAIR 5COND 20/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 5COND 20/22AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1075A 0104000	1075A Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)	7 - 30
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.365 in	0.365 in
Jacket (Insulation) Diameter [diameter]	9.27 mm	9.27 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm	1.067 mm
Jacket (Insulation) Thickness	0.042 in	0.042 in
Jacket Color	Black	Black
Length	-	3048 m
Length [x]	1219.2 m	1219.2 m
Length [x]	4000 ft	4000 - 10000 ft
Number of Conductors	5	5
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	22, 20	22, 20

MULTI-PAIR 5COND 20/22AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Length	Length [x]	Shield Type	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Ratings	Jacket Color	Cable Type	Shield Material	Features	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]
Belden Inc. 1075A 01010000	-30 ░C	105 ░C	100 %	3048 m	10000 ft	Foil	Copper, Bare	5	Poly-Vinyl Chloride (PVC)	20, 22	UL Style 2464	Black	Multi-Pair	Aluminum	Drain Wire, Rip Cord	Poly-Vinyl Chloride (PVC)	0.365 in	9.27 mm	7 Strands, 28 AWG (2), 30	1.067 mm	0.042 in
Belden Inc. 1075A 0104000	-30 ░C	105 ░C	100 %		4000 ft	Foil	Copper, Bare	5	Poly-Vinyl Chloride (PVC)	20, 22	UL Style 2464	Black	Multi-Pair	Aluminum	Drain Wire, Rip Cord	Poly-Vinyl Chloride (PVC)	0.365 in	9.27 mm	7 Strands, 28 AWG (2), 30	1.067 mm	0.042 in	1219.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 1.98

General part information

5 (2.5 Pair Twisted) Conductor Multi-Pair Cable Black 20 AWG, 22 AWG Foil 4000' (1219.2m)

Technical documentation and resources

No documents available
