D2520-5002-AR

Active

3M (TC)

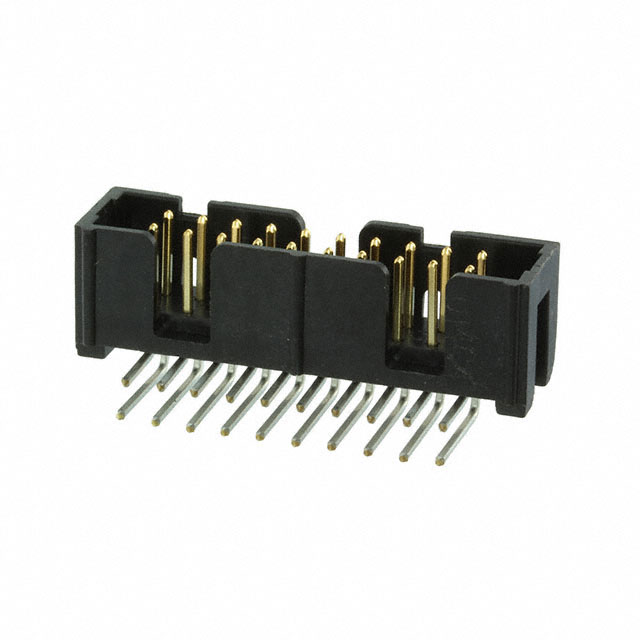

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE RIGHT ANGLE

Search across all available documentation for this part.

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	D2520-5002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.338 in
Insulation Height	8.59 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Rows	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Connector Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Contact Finish - Mating	Features	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Type	Mounting Type	Number of Positions Loaded	Insulation Color	Style	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Insulation Height	Insulation Height
3M (TC) D2520-6002-AR	2	Push-Pull	1 çm	39.4 çin	2.84 mm	0.112 in	0.1 in	2.54 mm	Solder	Square	105 ░C	-55 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	20	0.253 in	6.43 mm	10 çin	0.25 çm	Tin	Brass	Gold	Keying Slot	12.5 mm	0.492 in	UL94 V-0	Male Pin	Through Hole	All	Black	Board to Cable/Wire	1.75 A	2.54 mm	0.1 in	Shrouded - 4 Wall
3M (TC) D2520-5002-AR	2	Push-Pull	1 çm	39.4 çin	2.84 mm	0.112 in	0.1 in	2.54 mm	Solder	Square	105 ░C	-55 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	20			10 çin	0.25 çm	Tin	Brass	Gold	Keying Slot			UL94 V-0	Male Pin	Through Hole Right Angle	All	Black	Board to Cable/Wire	1.75 A	2.54 mm	0.1 in	Shrouded - 4 Wall	0.338 in	8.59 mm
