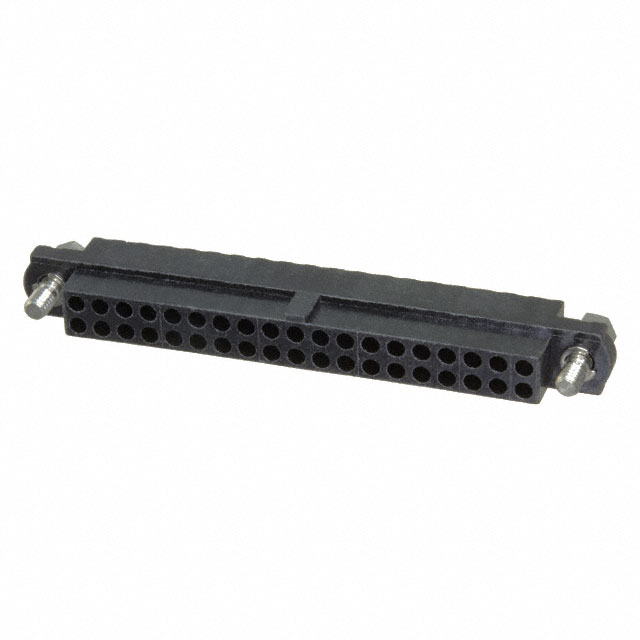

M80-4133898

Active

Harwin Inc.

19+19 POS. FEMALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN M80-001 +3

M80-4133898

Active

Harwin Inc.

19+19 POS. FEMALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue EN M80-001 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4133898

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	38
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

M80-413 Series

Part	Contact Type	Note	Number of Rows	Pitch [x]	Pitch [x]	Insulation Material	Row Spacing	Row Spacing	Contact Termination	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Features
Harwin Inc. M80-4133898	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	38	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4133098	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	30	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4134698	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	46	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4133498	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	34	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4131498	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	14	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4135098	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	50	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4132498	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	24	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4132098	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	20	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4131098	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	10	Receptacle	Mating Flange Polarizing Key
Harwin Inc. M80-4131298	Female Socket	Contacts Not Included	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	Black	-55 °C	125 °C	12	Receptacle	Mating Flange Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	92	$ 5.55
Newark	Each	50	$ 7.36
		100	$ 6.87
		250	$ 6.34
		500	$ 5.85
		1000	$ 5.36
		2500	$ 4.84
