X40626S14I-4.5A

Active

Renesas Electronics Corporation

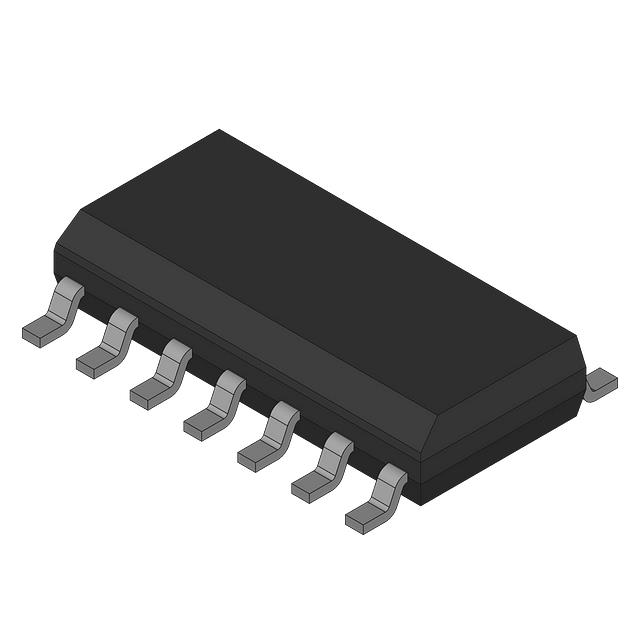

IC SUPERVISOR 2 CHANNEL 14SOIC

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC SUPERVISOR 2 CHANNEL 14SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X40626S14I-4.5A	X40626 Series

Mounting Type	Surface Mount	Surface Mount
Number of Voltages Monitored	2	2
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Output	Open Drain or Open Collector	Open Drain or Open Collector
Package / Case	14-SOIC	14-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Reset	Active Low	Active Low
Reset Timeout	100 ms	100 ms
Type	Multi-Voltage Supervisor	Multi-Voltage Supervisor

IC SUPERVISOR 2 CHANNEL 14SOIC

Part	Mounting Type	Package / Case [x]	Package / Case [y]	Package / Case	Number of Voltages Monitored	Reset Timeout	Output	Type	Reset	Operating Temperature [Max]	Operating Temperature [Min]
Renesas Electronics Corporation X40626S14I-4.5A	Surface Mount	0.154 in	3.9 mm	14-SOIC	2	100 ms	Open Drain or Open Collector	Multi-Voltage Supervisor	Active Low	85 °C	-40 °C
Renesas Electronics Corporation X40626S14-4.5A	Surface Mount	0.154 in	3.9 mm	14-SOIC	2	100 ms	Open Drain or Open Collector	Multi-Voltage Supervisor	Active Low	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	189	$ 1.59

General part information

Supervisor Open Drain or Open Collector 2 Channel 14-SOIC

Technical documentation and resources

No documents available
