EKMC4605112K
ActivePanasonic Electric Works

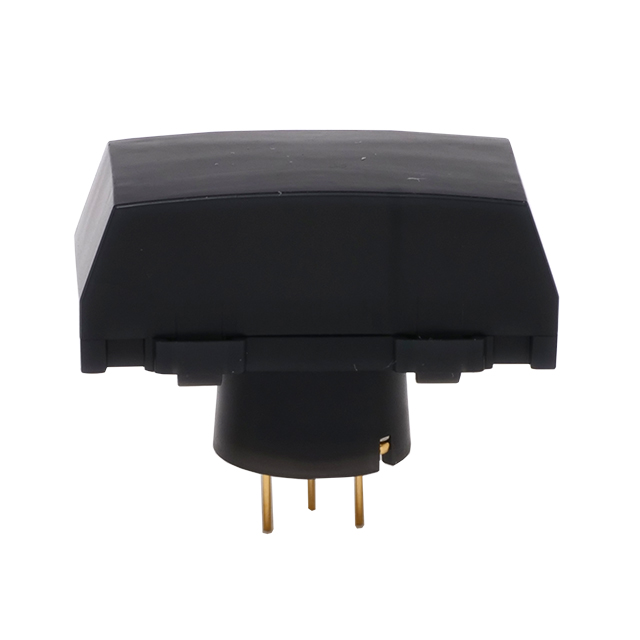

SENSOR MOTION PIR WIDE FOV BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKMC4605112K
ActivePanasonic Electric Works
SENSOR MOTION PIR WIDE FOV BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMC4605112K |
|---|---|
| Detection Pattern | Wide |
| Features | Horizontally Wide Lens, Black |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Sensing Distance | 197 in |
| Sensing Distance | 5 m |
| Sensing Distance | 16.4 ft |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.83 | |
| 10 | $ 11.74 | |||
| 25 | $ 11.13 | |||
| 100 | $ 9.58 | |||
| 450 | $ 8.96 | |||
| 950 | $ 8.50 | |||
Description
General part information
EKMC4605112 Series
Sensor PIR (Passive Infrared) 197" (5m) 16.4' Horizontally Wide Lens, Black Module
