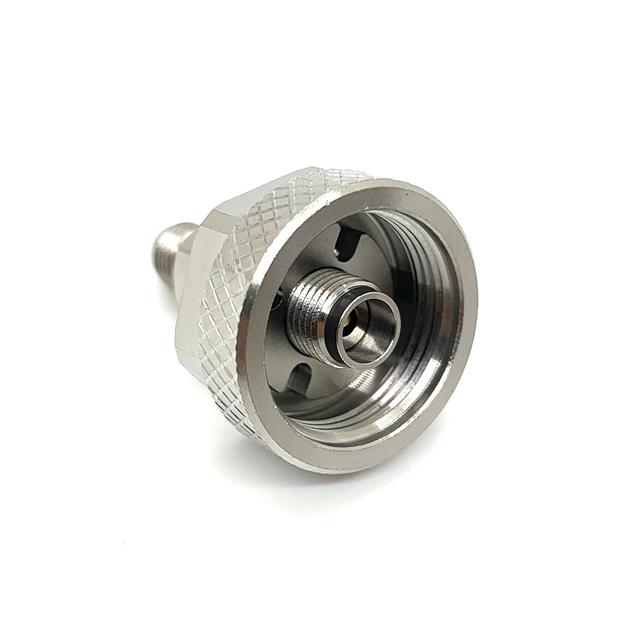

NMD2.4F-3.5F

Active

LOW PIM RF

NMD, VNA DC~34GHZ HIGH PRECISION

Search across all available documentation for this part.

Active

LOW PIM RF

NMD, VNA DC~34GHZ HIGH PRECISION

Technical Specifications

Parameters and characteristics commom to parts in this series

COAX ADAPT N TO 2.4MM

Part	Adapter Series	Adapter Series	Body Material	Convert From (Adapter End)	Center Gender	Conversion Type	Style	Frequency - Max [Max]	Convert To (Adapter End)	Body Finish	Adapter Type	Mounting Type	Adapter Series [Min]	Adapter Series [Max]	Convert From (Adapter End)	Convert To (Adapter End)
LOW PIM RF NMD2.4F-NF	N	2.4 mm	Stainless Steel	Female Socket, N Jack	Female to Female	Between Series	Straight	19 GHz	2.4 mm	Passivated	Jack to Jack	Free Hanging (In-Line)
LOW PIM RF NMD2.4F-3.5F			Stainless Steel		Female to Female	Between Series	Straight	34 GHz		Passivated		Free Hanging (In-Line)	2.4 mm	3.5 mm	2.4 mm	3.5mm Jack, Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 3.5mm Jack, Female Socket

Technical documentation and resources

No documents available
