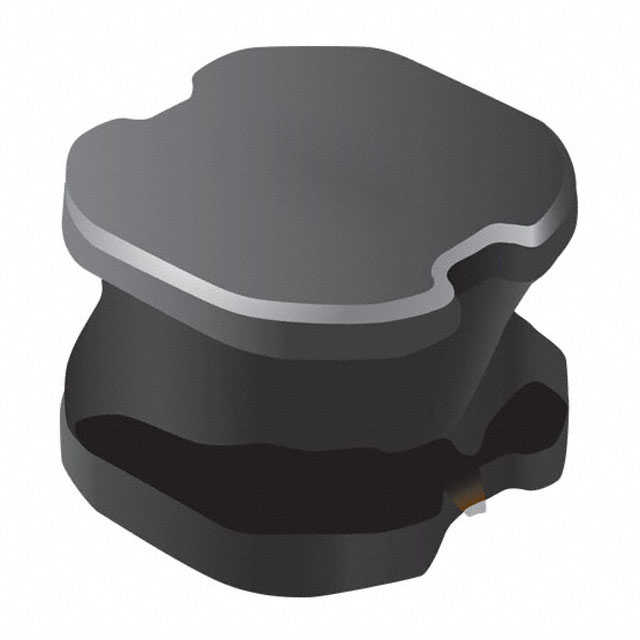

SRN6045-1R3Y
ActiveBourns Inc.
POWER INDUCTOR (SMD), 1.3 ΜH, 4 A, SHIELDED, 8 A, SRN6045 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRN6045-1R3Y
ActiveBourns Inc.
POWER INDUCTOR (SMD), 1.3 ΜH, 4 A, SHIELDED, 8 A, SRN6045 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN6045-1R3Y |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 4 A |
| DC Resistance (DCR) | 17 mOhm |
| Frequency - Self Resonant | 48 MHz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 1.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 15, 7.96 MHz |
| Shielding | Shielded |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| Tape & Reel (TR) | 1000 | $ 0.18 | ||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.25 | |
| 5000 | $ 0.24 | |||
| 10000 | $ 0.23 | |||
| 20000 | $ 0.21 | |||
| 30000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
SRN6045 Series
1.3 µH Shielded Drum Core, Wirewound Inductor 4 A 17mOhm Max Nonstandard
