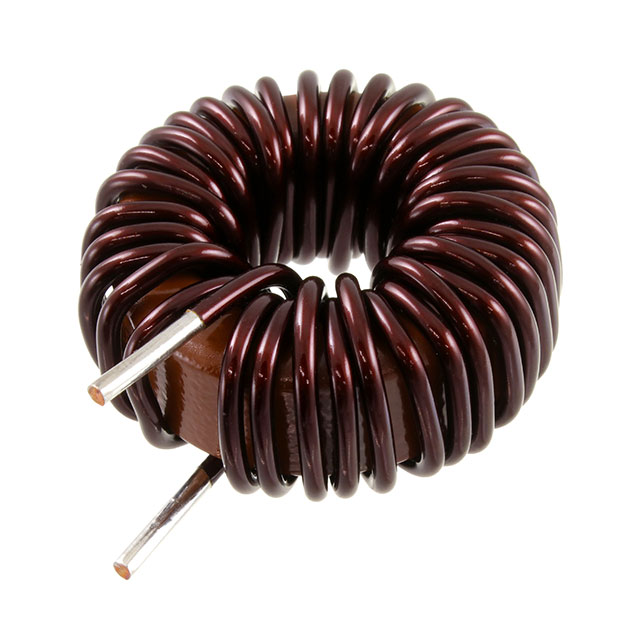

HHBC24N-2R3A0104V
ActiveKEMET
CMC 104UH 20A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
HHBC24N-2R3A0104V
ActiveKEMET
CMC 104UH 20A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HHBC24N-2R3A0104V |
|---|---|
| Current Rating (Max) [Max] | 20 A |
| DC Resistance (DCR) (Max) [Max] | 10.4 mOhm |
| Height (Max) [Max] | 49.5 mm |
| Height (Max) [Max] | 1.949 in |
| Inductance @ Frequency | 104 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Vertical, No Base |
| Package / Case | 2 Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.30 | |
Description
General part information
HHBC24N Series
104 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 20A DCR 10.4mOhm
