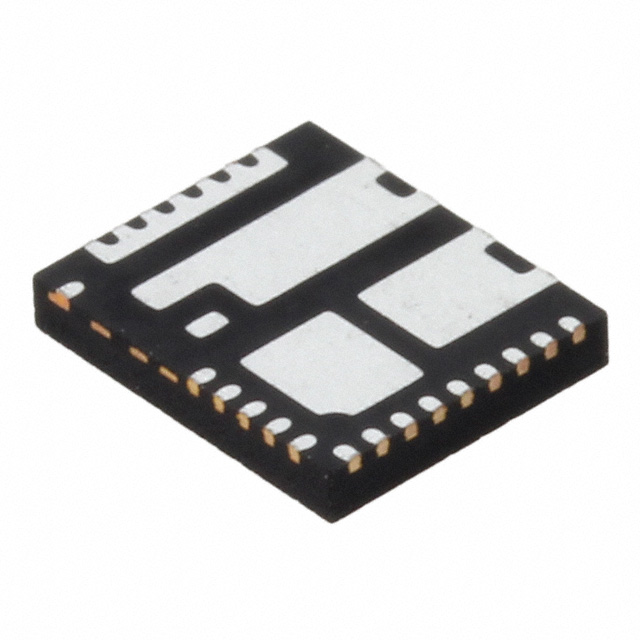

IR3551MTRPBF

Obsolete

Infineon Technologies

IC HALF BRIDGE DRIVER 50A PQFN

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC HALF BRIDGE DRIVER 50A PQFN

Technical Specifications

Parameters and characteristics for this part

Specification	IR3551MTRPBF

Applications	Voltage Regulators, Synchronous Buck Converters
Current - Output / Channel	50 A
Current - Peak Output	75 A
Fault Protection	Over Temperature, UVLO
Features	Status Flag, Diode Emulation, Bootstrap Circuit
Interface	PWM
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	28-VFQFN Exposed Pad
Supplier Device Package	PQFN (5x6)
Technology	Power MOSFET
Voltage - Load [Max]	15 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	7 V
Voltage - Supply [Min]	4.5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Current - Output / Channel	Current - Peak Output	Supplier Device Package	Technology	Voltage - Load [Min]	Voltage - Load [Max]	Applications	Fault Protection	Interface	Load Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]
Infineon Technologies IR3551MTRPBF	-40 °C	125 ¯C	Bootstrap Circuit Diode Emulation Status Flag	Surface Mount	50 A	75 A	PQFN (5x6)	Power MOSFET	4.5 V	15 V	Synchronous Buck Converters Voltage Regulators	Over Temperature UVLO	PWM	Inductive	28-VFQFN Exposed Pad	7 V	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half Bridge Driver Synchronous Buck Converters, Voltage Regulators Power MOSFET PQFN (5x6)
