786200-1

Active

TE Connectivity AMP Connectors

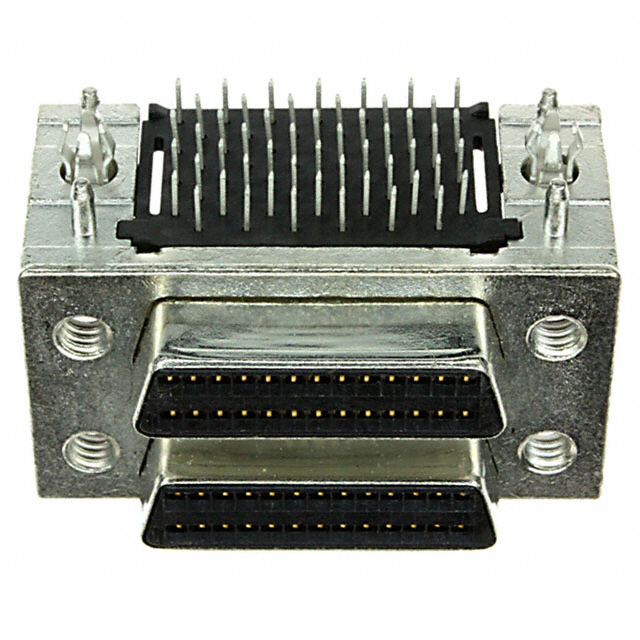

CONN STCK RCPT 26/26P R/A SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN STCK RCPT 26/26P R/A SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	786200-1

Connector Style	Outer Shroud Contacts
Connector Type	Stacked
Connector Type	2 Plugs
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Board Lock
Flange Feature	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Termination	Solder

CONN STCK RCPT 26/26P R/A SOLDER

Part	Flange Feature	Termination	Connector Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Features	Contact Finish	Mounting Type	Number of Rows
TE Connectivity AMP Connectors 786200-1	Housing/Shell (4-40)	Solder	Stacked	2 Plugs	0.76 Ám	30 Áin	Outer Shroud Contacts	Board Guide, Board Lock	Gold	Panel Mount, Right Angle, Through Hole	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26, 26 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
