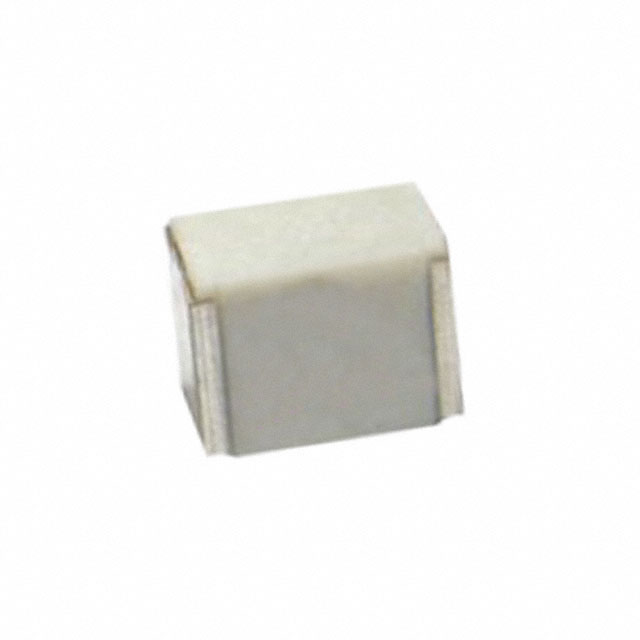

F161PU224K050V

Active

KEMET

CAP FILM 0.22UF 10% 50VDC 2220

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.22UF 10% 50VDC 2220

Technical Specifications

Parameters and characteristics for this part

Specification	F161PU224K050V

Applications	Automotive
Capacitance	0.22 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Ratings	AEC-Q200
Size / Dimension [x]	0.224 in
Size / Dimension [x]	5.7 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	30 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - DC	Package / Case	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Termination	Tolerance	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max)	Ratings
KEMET F161PU224K050V	50 VDC	5750 Metric	2220	Surface Mount	-55 °C	125 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Solder Pads	10 %	30 V	0.224 in	5.7 mm	5 mm	0.197 "	Automotive	0.22 µF	0.165 in	4.2 mm	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.70
	Digi-Reel®	1	$ 3.70
	Tape & Reel (TR)	2100	$ 1.36
Newark	Each (Supplied on Full Reel)	2000	$ 1.53
		4000	$ 1.38
		6000	$ 1.33
		10000	$ 1.28

General part information

0.22 µF Film Capacitor 30V 50V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2220 (5750 Metric)
