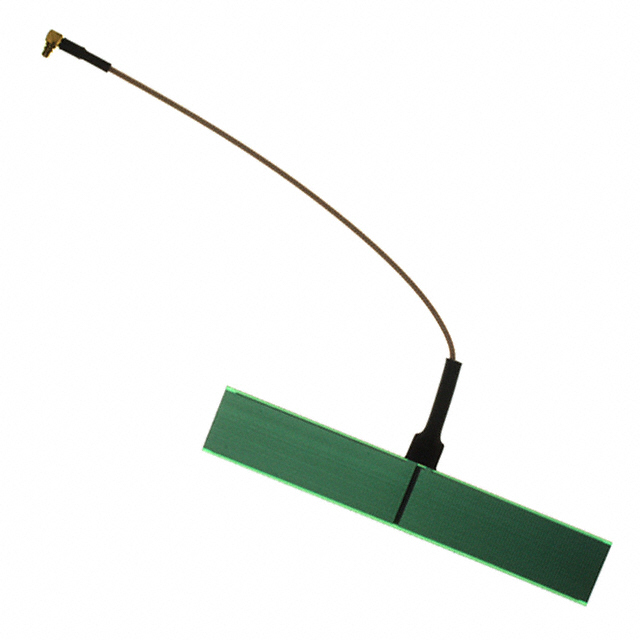

TPCB02593-6-RMM-AGDP-L

Active

Nearson Inc.

ANTENNA EMBEDDED MICROSTRIPE R/A

Search across all available documentation for this part.

Active

Nearson Inc.

ANTENNA EMBEDDED MICROSTRIPE R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA EMBEDDED MICROSTRIPE R/A

Part	Frequency (Center/Band)	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Gain	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Termination	VSWR
Nearson Inc. TPCB02593-6-RMM-AGDP-L	1.85 GHz, 892 MHz	4	1.71 GHz, 824 MHz	1.99 GHz, 960 MHz	0 dBi, 2 dBic	PCB Trace	0.016 in	0.4 mm	SMA	2
Nearson Inc. TPCB02593-12-AM-AGDP-L	1.85 GHz, 892 MHz	4	1.71 GHz, 824 MHz	1.99 GHz, 960 MHz	0 dBi, 2 dBic	PCB Trace	0.016 in	0.4 mm		2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 8.91

General part information

RF ANTENNA PCB Trace SMA

Technical documentation and resources

No documents available
