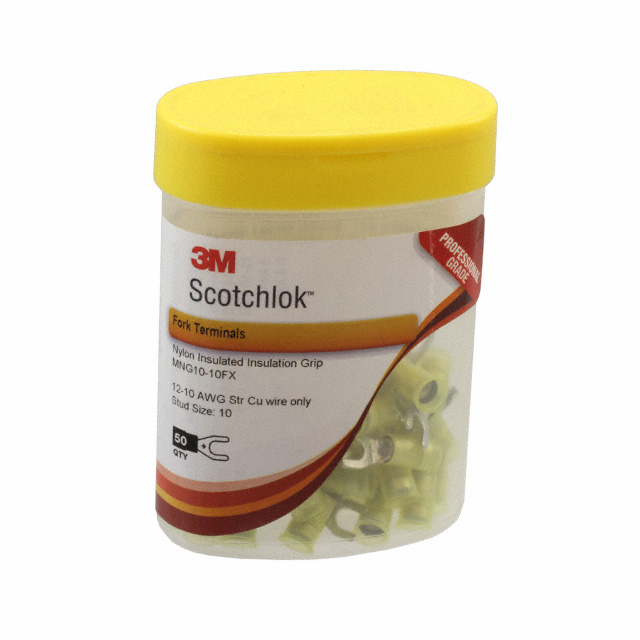

MNG10-10FX-BOTTLE

Active

CONN SPADE TERM 10-12AWG 10 50PC

Deep-Dive with AI

Search across all available documentation for this part.

MNG10-10FX-BOTTLE

Active

CONN SPADE TERM 10-12AWG 10 50PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.77

Description

General part information

MNG10 Series

Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNG10-10FX-BOTTLE	MNG10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Features	-	Gel Filled
Gender	-	Male, Female
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Insulation Diameter	-	6.86 mm
Insulation Diameter	-	0.27 in
Length - Overall	26.16 mm	26.16 - 30.23 mm
Length - Overall	-	24.89 - 32 mm
Length - Overall	-	1.19 in
Length - Overall [x]	1.03 in	0.98 - 1.26 in
Length - Pin	-	13.97 mm
Length - Pin	-	0.55 in
Length - Ring Center to Termination	0.29 in	0.28 - 0.29 in
Length - Ring Center to Termination	7.37 mm	7.11 - 7.37 mm
Length - Termination	13.97 mm	13.97 mm
Length - Termination	0.55 in	0.55 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter	-	0.11 "
Pin Diameter	-	2.79 mm
Stud/Tab Size	10 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.032 - 0.05 in
Tab Thickness	-	0.81 - 1.27 mm
Tab Width	-	6.35 - 9.53 mm
Tab Width	-	0.25 - 0.375 in
Terminal Type	Standard	Snap, Spring, Circular, Flanged, Standard, Butt Splice, Inline, Individual Openings, Multi-Stud
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	7.11 - 13.72 mm
Width - Outer Edges	-	0.28 - 0.54 in
Width - Outer Edges	-	9.91 - 13.46 mm
Width - Outer Edges	-	0.39 in
Width - Outer Edges [x]	9.65 mm	9.65 mm
Width - Outer Edges [x]	0.38 "	0.38 "
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MNG10 Series

CONN SPADE TERM 10-12AWG 10 50PC

Part	Color	Length - Overall [x]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination	Termination	Length - Termination	Length - Termination	Contact Material	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Stud/Tab Size	Insulation Diameter	Insulation Diameter	Mounting Type	Contact Finish	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Number of Wire Entries
3M MNG10-10FLX-BOTTLE	Yellow	1.03 in	26.16 mm	7.11 mm	0.28 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)	8.13 mm	0.32 in	Insulated	10 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Snap, Spring	12 AWG	10 AWG
3M MNG10-4R/SK	Yellow	0.98 in				Crimp			Copper, ETP	Nylon, Polyamide (PA)	7.11 mm	0.28 in	Insulated	4 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG	24.89 mm	0.04 in	1.02 mm
3M MNG10-6RX-BOTTLE	Yellow	1.03 in	26.16 mm			Crimp			Copper, ETP	Nylon, Polyamide (PA)			Insulated	6 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG		0.04 in	1.02 mm	9.65 mm	0.38 "
3M MNG10-8RX-BOTTLE	Yellow	1.03 in	26.16 mm			Crimp			Copper, ETP	Nylon, Polyamide (PA)			Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG		0.04 in	1.02 mm	9.65 mm	0.38 "	8 Stud
3M MNG10-38R/SK	Yellow	1.26 in				Crimp			Copper, ETP	Nylon, Polyamide (PA)	13.72 mm	0.54 in	Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG	32 mm	0.04 in	1.02 mm			3/8 Stud
3M MNG10-8FFBX-BOTTLE	Yellow	1.03 in	26.16 mm	7.37 mm	0.29 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)	8.13 mm	0.32 in	Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Flanged	12 AWG	10 AWG						8 Stud
3M MNG10-8FX-BOTTLE	Yellow	1.03 in	26.16 mm	7.37 mm	0.29 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)			Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Standard	12 AWG	10 AWG				9.65 mm	0.38 "	8 Stud
3M MNG10-250DMK	Yellow	1.05 in	26.67 mm			Crimp			Copper, ETP				Non-Mating End Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Standard	12 AWG	10 AWG							6.35 mm	0.25 in	Male	0.032 in	0.81 mm
3M MNG10BCX-BOTTLE	Yellow					Crimp							Fully Insulated						Butt Splice, Individual Openings, Inline	12 AWG	10 AWG												2
3M MNG10BCMX-A-BOTTLE	Yellow					Crimp							Fully Insulated						Butt Splice, Individual Openings, Inline	12 AWG	10 AWG												2
