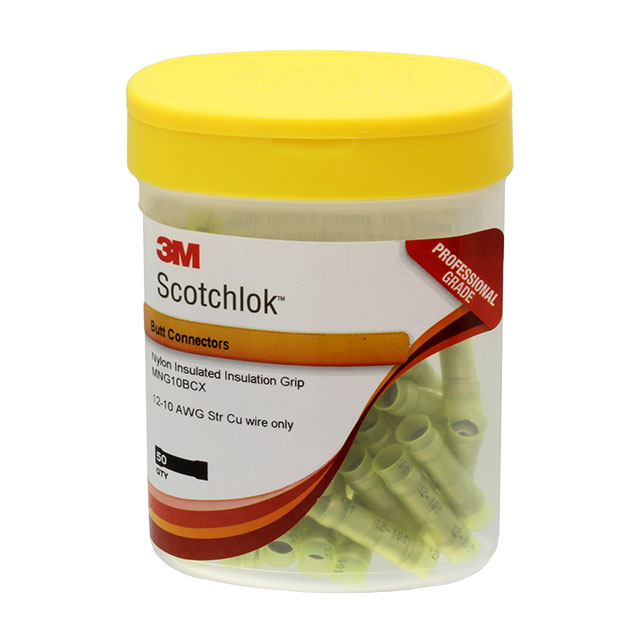

MNG10BCX-BOTTLE

Active

CONN SPLICE 10-12 AWG CRIMP 50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG10BCX-BOTTLE

Active

CONN SPLICE 10-12 AWG CRIMP 50PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 149.68
		10	$ 137.35
		25	$ 132.07
		50	$ 127.67

Description

General part information

MNG10 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 10-12 AWG Yellow

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNG10BCX-BOTTLE	MNG10 Series

Color	Yellow	Yellow
Contact Finish	-	Tin
Contact Material	-	ETP, Copper, Brass
Features	-	Gel Filled
Gender	-	Male, Female
Insulation	Fully Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	-	0.25 "
Insulation Diameter	-	6.35 mm
Insulation Diameter	-	6.86 mm
Insulation Diameter	-	0.27 in
Length - Overall	-	0.98 - 1.26 in
Length - Overall	-	26.16 - 30.23 mm
Length - Overall	-	24.89 - 32 mm
Length - Overall	-	1.19 in
Length - Pin	-	13.97 mm
Length - Pin	-	0.55 in
Length - Ring Center to Termination	-	7.11 - 7.37 mm
Length - Ring Center to Termination	-	0.28 - 0.29 in
Length - Termination	-	13.97 mm
Length - Termination	-	0.55 in
Material - Insulation	-	Nylon, Polyamide (PA)
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	2	2
Pin Diameter	-	0.11 "
Pin Diameter	-	2.79 mm
Stud/Tab Size	-	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.032 - 0.05 in
Tab Thickness	-	0.81 - 1.27 mm
Tab Width	-	6.35 - 9.53 mm
Tab Width	-	0.25 - 0.375 in
Terminal Type	Butt Splice, Inline, Individual Openings	Snap, Spring, Circular, Flanged, Standard, Butt Splice, Inline, Individual Openings, Multi-Stud
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	7.11 - 13.72 mm
Width - Outer Edges	-	0.28 - 0.54 in
Width - Outer Edges	-	9.65 mm
Width - Outer Edges	-	0.38 "
Width - Outer Edges	-	9.91 - 13.46 mm
Width - Outer Edges	-	0.39 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MNG10 Series

CONN SPADE TERM 10-12AWG 10 50PC

Part	Color	Length - Overall [x]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination	Termination	Length - Termination	Length - Termination	Contact Material	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Stud/Tab Size	Insulation Diameter	Insulation Diameter	Mounting Type	Contact Finish	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Number of Wire Entries
3M MNG10-10FLX-BOTTLE	Yellow	1.03 in	26.16 mm	7.11 mm	0.28 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)	8.13 mm	0.32 in	Insulated	10 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Snap, Spring	12 AWG	10 AWG
3M MNG10-4R/SK	Yellow	0.98 in				Crimp			Copper, ETP	Nylon, Polyamide (PA)	7.11 mm	0.28 in	Insulated	4 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG	24.89 mm	0.04 in	1.02 mm
3M MNG10-6RX-BOTTLE	Yellow	1.03 in	26.16 mm			Crimp			Copper, ETP	Nylon, Polyamide (PA)			Insulated	6 Stud	0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG		0.04 in	1.02 mm	9.65 mm	0.38 "
3M MNG10-8RX-BOTTLE	Yellow	1.03 in	26.16 mm			Crimp			Copper, ETP	Nylon, Polyamide (PA)			Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG		0.04 in	1.02 mm	9.65 mm	0.38 "	8 Stud
3M MNG10-38R/SK	Yellow	1.26 in				Crimp			Copper, ETP	Nylon, Polyamide (PA)	13.72 mm	0.54 in	Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Circular	12 AWG	10 AWG	32 mm	0.04 in	1.02 mm			3/8 Stud
3M MNG10-8FFBX-BOTTLE	Yellow	1.03 in	26.16 mm	7.37 mm	0.29 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)	8.13 mm	0.32 in	Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Flanged	12 AWG	10 AWG						8 Stud
3M MNG10-8FX-BOTTLE	Yellow	1.03 in	26.16 mm	7.37 mm	0.29 in	Crimp	13.97 mm	0.55 in	Copper, ETP	Nylon, Polyamide (PA)			Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Standard	12 AWG	10 AWG				9.65 mm	0.38 "	8 Stud
3M MNG10-250DMK	Yellow	1.05 in	26.67 mm			Crimp			Copper, ETP				Non-Mating End Insulated		0.25 "	6.35 mm	Free Hanging (In-Line)	Tin	Standard	12 AWG	10 AWG							6.35 mm	0.25 in	Male	0.032 in	0.81 mm
3M MNG10BCX-BOTTLE	Yellow					Crimp							Fully Insulated						Butt Splice, Individual Openings, Inline	12 AWG	10 AWG												2
3M MNG10BCMX-A-BOTTLE	Yellow					Crimp							Fully Insulated						Butt Splice, Individual Openings, Inline	12 AWG	10 AWG												2
