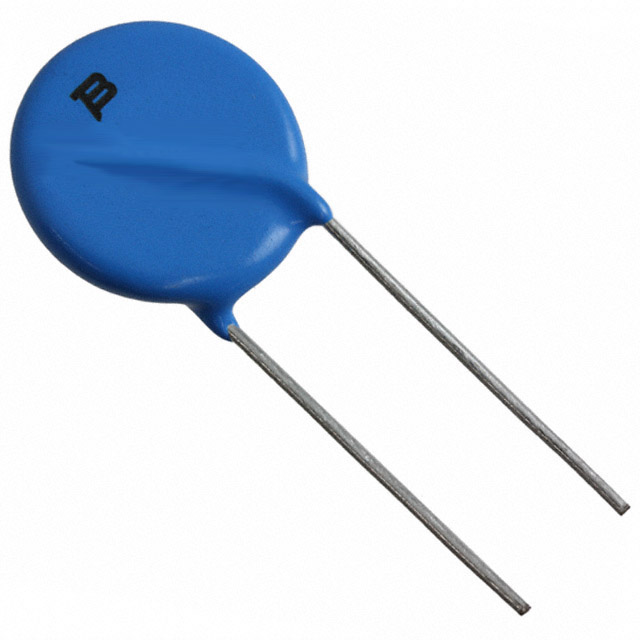

MOV-20D181KTR

Active

Bourns Inc.

VARISTOR 180V 6.5KA DISC 20MM

Search across all available documentation for this part.

Active

Bourns Inc.

VARISTOR 180V 6.5KA DISC 20MM

Technical Specifications

Parameters and characteristics for this part

Part	Varistor Voltage (Min) [Min]	Mounting Type	Varistor Voltage (Typ)	Package / Case	Capacitance @ Frequency	Maximum AC Volts [Max]	Energy	Maximum DC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Varistor Voltage (Max) [Max]	Current - Surge	Number of Circuits	Maximum AC Volts
Bourns Inc. MOV-20D220KTR	20 V	Through Hole	22 V	Disc 20mm	24000 pF	14 V	14 J	18 V	-40 °C	105 ░C	24 V	2 kA	1
Bourns Inc. MOV-20D181KTR	162 V	Through Hole	180 V	Disc 20mm	2640 pF	115 V	85 J	150 V	-40 °C	105 ░C	198 V		1
Bourns Inc. MOV-20D271KTR	243 V	Through Hole	270 V	Disc 20mm	1800 pF	175 V	127 J	225 V	-40 °C	105 ░C	297 V		1
Bourns Inc. MOV-20D182K	1620 V	Through Hole	1.8 kV	Disc 20mm	312 pF	1.1 kV	625 J	1.465 kV	-40 °C	105 ░C	1.98 kV		1
Bourns Inc. MOV-20D560KTR	50 V	Through Hole	56 V	Disc 20mm	13200 pF	35 V	41 J	45 V	-40 °C	105 ░C	62 V	2 kA	1
Bourns Inc. MOV-20D270KTR		Through Hole	27 V	Disc 20mm	21600 pF	17 V	18 J	22 V	-40 °C	105 ░C	30 V	2 kA	1
Bourns Inc. MOV-20D301K	270 V	Through Hole	300 V	Disc 20mm	1560 pF	190 V		250 V	-40 °C	105 ░C	330 V		1
Bourns Inc. MOV-20D152K	1.35 kV	Through Hole	1.5 kV	Disc 20mm	384 pF	940 V	383 J	1.2 kV	-40 °C	105 ░C	1.65 kV		1
Bourns Inc. MOV-20D101K	90 V	Through Hole	100 V	Disc 20mm	5040 pF	60 V	45 J	85 V	-40 °C	105 ░C	110 V		1
Bourns Inc. MOV-20D471KTR	423 V	Through Hole	470 V	Disc 20mm	1020 pF		220 J	385 V	-40 °C	105 ░C	517 V		1	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.22

General part information

180 V 6.5 kA Varistor 1 Circuit Through Hole Disc 20mm
