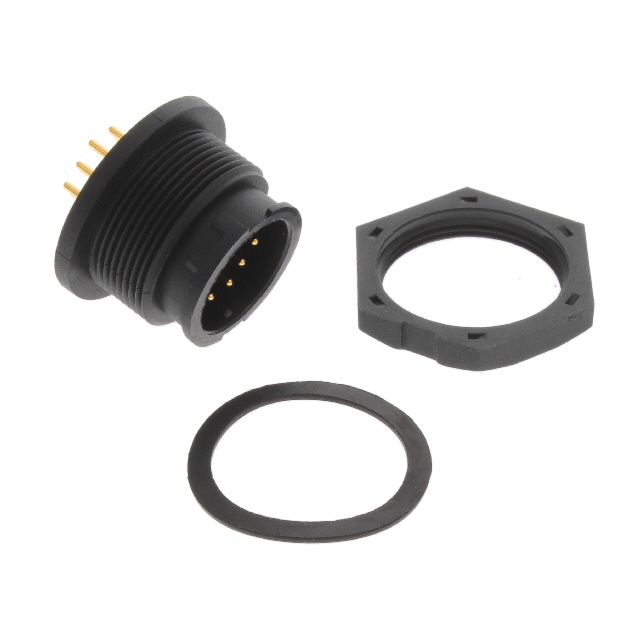

CD-10PMMP-LC7001

Active

Amphenol LTW

CONN RCPT MALE 10POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 10POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CD-10PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Solder

Part	Insert Material	Primary Material	Color	Shell Size - Insert	Orientation	Ingress Protection	Termination	Shielding	Contact Finish - Mating	Current Rating (Amps)	Shell Material	Mounting Type	Contact Material	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions
Amphenol LTW CD-10PMMP-LC7001	Polyamide (PA) Nylon Glass Filled	Plastic	Black	C	Keyed	IP67 - Dust Tight Waterproof	Solder	Unshielded	Gold	5 A	Glass Filled Nylon Polyamide (PA)	Panel Mount Through Hole	Copper Alloy	Male Pins Receptacle	Bayonet Lock	-40 °C	105 ░C	Bulkhead - Front Side Nut	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder
