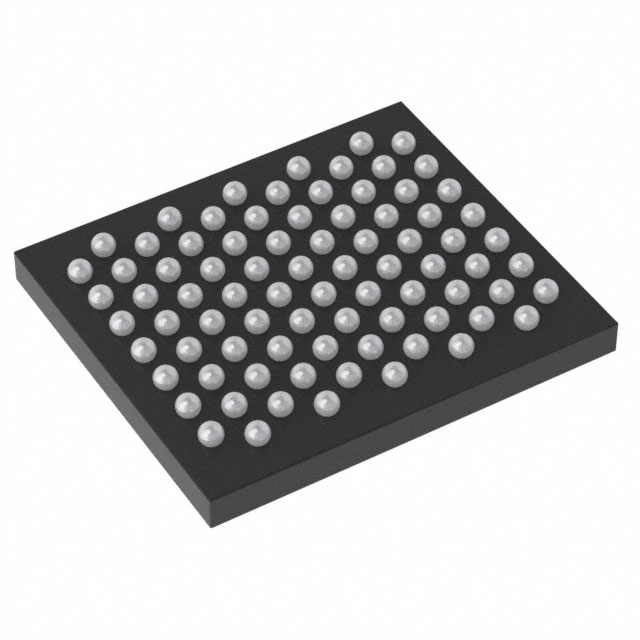

CY8C6247FDI-D02T
ActiveInfineon Technologies
IC MCU 32BIT 1MB FLASH 80WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY8C6247FDI-D02T
ActiveInfineon Technologies
IC MCU 32BIT 1MB FLASH 80WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY8C6247FDI-D02T |
|---|---|
| Connectivity | I2C, SPI, UART/USART, USB, LINbus, QSPI |
| Core Processor | ARM® Cortex®-M4/M0 |
| Core Size [custom] | 32-Bit Dual-Core |
| Data Converters | D/A 1x12b, D/A 2x7b, A/D 16x12b SAR, A/D 16x10b |
| EEPROM Size | 32 K |
| Mounting Type | Surface Mount |
| Number of I/O | 62 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | WLCSP, 80-XFBGA |
| Peripherals | WDT, LCD, PWM, Brown-out Detect/Reset, CapSense, DMA, POR, I2S |
| Program Memory Size | 1 MB |
| Program Memory Type | FLASH |
| RAM Size | 288 K |
| Speed | 150 MHz |
| Speed | 100 MHz |
| Supplier Device Package | 80-WLCSP |
| Supplier Device Package [x] | 3.68 |
| Supplier Device Package [y] | 3.19 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V |
CY8C6247 Series
| Part | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Core Processor | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Connectivity | Supplier Device Package | Oscillator Type | Program Memory Type | Program Memory Size | RAM Size | Mounting Type | Data Converters [custom] | Data Converters [custom] | Peripherals | Package / Case | EEPROM Size | Core Size [custom] | Speed | Speed | Data Converters | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies | 104 | 85 °C | -40 °C | ARM® Cortex®-M4/M0 | 3.6 V | 1.7 V | I2C LINbus QSPI SPI UART/USART USB | 124-VFBGA (9x9) | Internal | FLASH | 1 MB | 288 K | Surface Mount | D/A 1x12b | A/D 8x12b SAR | Brown-out Detect/Reset Cap Sense DMA I2S POR PWM WDT | 124-VFBGA | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | |||
Infineon Technologies | 104 | 85 °C | -40 °C | ARM® Cortex®-M4/M0 | 5.5 V | 1.71 V | I2C LINbus QSPI SPI UART/USART USB | 124-VFBGA (9x9) | Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD POR PWM WDT | 124-VFBGA | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | A/D 16x10b A/D 16x12b SAR D/A 1x12b D/A 2x7b | ||||
Infineon Technologies | 62 | 85 °C | -40 °C | ARM® Cortex®-M4/M0 | 5.5 V | 1.71 V | I2C LINbus QSPI SPI UART/USART USB | 80-WLCSP | Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD POR PWM WDT | 80-XFBGA WLCSP | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | A/D 16x10b A/D 16x12b SAR D/A 1x12b D/A 2x7b | 3.19 | 3.68 | ||
Infineon Technologies | 62 | 85 °C | -40 °C | ARM® Cortex®-M4/M0 | 5.5 V | 1.71 V | I2C LINbus QSPI SPI UART/USART USB | 80-WLCSP | Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD POR PWM WDT | 80-XFBGA WLCSP | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | A/D 16x10b A/D 16x12b SAR D/A 1x12b D/A 2x7b | 3.19 | 3.68 | ||
Infineon Technologies | 104 | 85 °C | -40 °C | ARM® Cortex®-M0+ ARM® Cortex®-M4F | 3.6 V | 1.7 V | FIFO I2C IrDA LINbus Microwire PCM PDM QSPI SmartCard SPI SSP UART/USART USB | 124-VFBGA (9x9) | External Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD LVD POR PWM Temp Sensor WDT | 124-VFBGA | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | A/D 16x10/12b SAR D/A 2x7b 1x12b Sigma-Delta | ||||
Infineon Technologies | 62 | 85 °C | -40 °C | ARM® Cortex®-M0+ ARM® Cortex®-M4F | 3.6 V | 1.71 V | FIFO I2C LINbus QSPI SPI UART/USART USB | 80-WLCSP | External Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD POR PWM Temp Sensor WDT | 80-XFBGA WLCSP | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz | 3.19 | 3.68 | |||
Infineon Technologies | 100 I/O | 85 °C | -40 °C | ARM® Cortex®-M0 ARM® Cortex®-M4 | 3.6 V | 1.71 V | FIFO I2C LINbus QSPI SPI UART/USART USB | 124-VFBGA (9x9) | External Internal | FLASH | 1 MB | 288 K | Surface Mount | Brown-out Detect/Reset CapSense DMA I2S LCD POR PWM Temp Sensor WDT | 124-VFBGA | 32 K | 32-Bit Dual-Core | 150 MHz | 100 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.57 | |
| 10 | $ 8.64 | |||
| 25 | $ 8.24 | |||
| 100 | $ 7.16 | |||
| 250 | $ 6.83 | |||
| 500 | $ 6.23 | |||
| 1000 | $ 5.43 | |||
| Digi-Reel® | 1 | $ 9.57 | ||
| 10 | $ 8.64 | |||
| 25 | $ 8.24 | |||
| 100 | $ 7.16 | |||
| 250 | $ 6.83 | |||
| 500 | $ 6.23 | |||
| 1000 | $ 5.43 | |||
| Tape & Reel (TR) | 2000 | $ 5.23 | ||
Description
General part information
CY8C6247 Series
ARM® Cortex®-M4/M0 PSoC® 6 Microcontroller IC 32-Bit Dual-Core 100MHz, 150MHz 1MB (1M x 8) FLASH 80-WLCSP (3.68x3.19)
