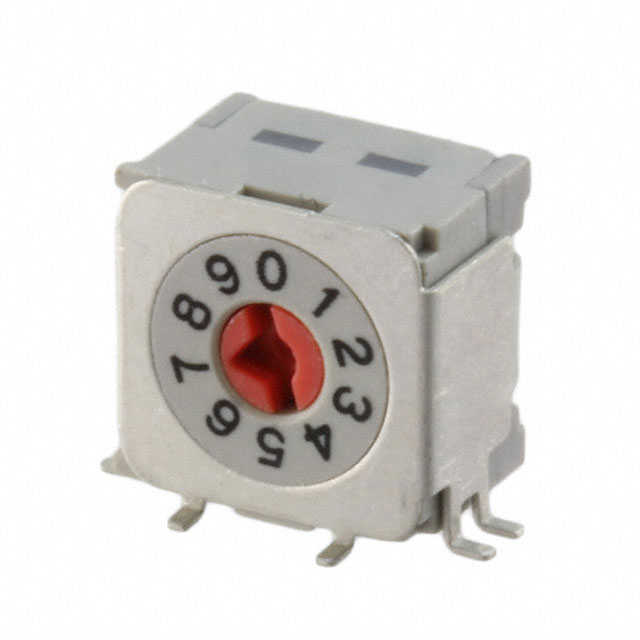

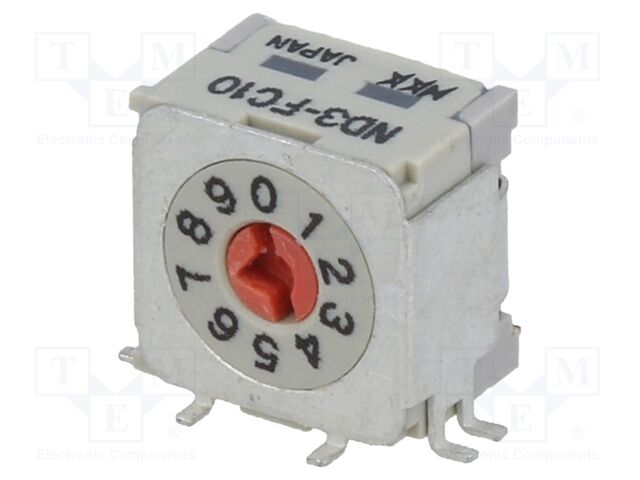

ND3FC10H

NKK Switches

ENCODING SWITCH; DEC/BCD; POS: 10; ANGULAR; RCONT MAX: 30MΩ; ND3

Search across all available documentation for this part.

NKK Switches

ENCODING SWITCH; DEC/BCD; POS: 10; ANGULAR; RCONT MAX: 30MΩ; ND3

Technical Specifications

Parameters and characteristics for this part

Specification	ND3FC10H

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD Complement
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	100 mA
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Height Above Board	8.03 mm
Height Above Board	0.316 in
Length [x]	8.13 mm
Length [x]	0.32 in
Mechanical Life	20000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	True

Part	Washable	Features	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Current Rating (Amps)	Body Material	Number of Positions	Voltage Rating	Termination Style	Length [x]	Length [x]	Circuit	Electrical Life	Actuator Level	Actuator Type	Mechanical Life	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch
NKK Switches ND3FC10H		Epoxy Sealed Terminals	0.05 in	1.27 mm	8.03 mm	0.316 in	Surface Mount Right Angle	100 mA	Polyamide (PA) Nylon Glass Filled	10	5 V	Gull Wing	8.13 mm	0.32 in	BCD Complement	20000 Steps	Flush Recessed	Rotary for Tool	20000 Cycles	Beryllium Copper	Gold	-25 °C	85 °C
NKK Switches ND3FC10P-R		Epoxy Sealed Terminals	0.1 in	2.54 mm			Surface Mount	100 mA	Polyamide (PA) Nylon Glass Filled	10	5 V	Gull Wing	8.13 mm	0.32 in	BCD Complement	20000 Steps	Flush Recessed	Rotary for Tool	20000 Cycles	Beryllium Copper	Gold	-25 °C	85 °C	Full

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD Complement 10 Position Surface Mount, Right Angle Rotary for Tool Actuator 100mA 5VDC
