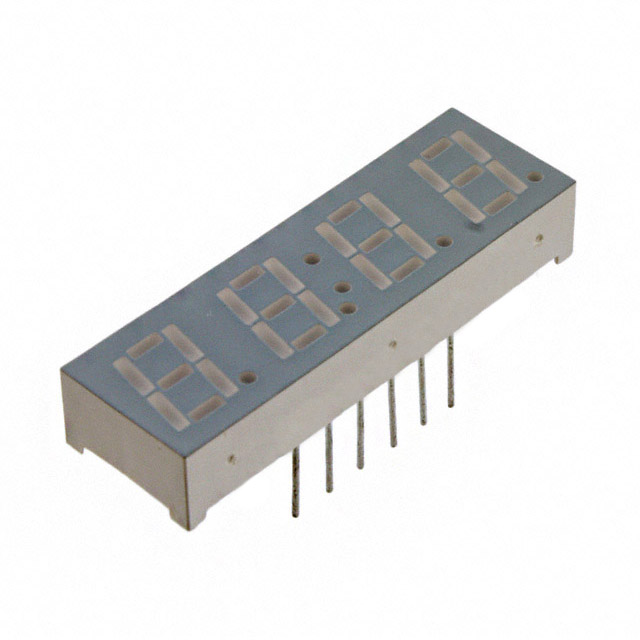

LDQ-A515RI

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" QUAD RED 36DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDQ-A515RI

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" QUAD RED 36DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDQ-A515RI

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	0.98 mcd
Number of Characters	4
Package / Case	0.6 in
Package / Case	36-DIP Module
Package / Case	15.24 mm
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	1.98 in
Size / Dimension [y]	50.3 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	700 nm

LDQ-A515 Series

DISP 7SEG 0.56" QUAD RED 36DIP

Part	Current - Test	Color	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Power Dissipation (Max) [Max]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Display Type	Millicandela Rating	Package / Case	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Common Pin
Lumex Opto/Components Inc. LDQ-A515RI	10 mA	Red	0.56 in	14.22 mm	4	120 mW	700 nm	2 V	7-Segment	0.98 mcd	0.6 in	36-DIP Module	15.24 mm	0.748 in	0.315 "	19 mm	1.98 in	50.3 mm	8 mm	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDQ-A515 Series

Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Anode 2V 10mA 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) 36-DIP Module (0.600", 15.24mm)

Documents

Technical documentation and resources

No documents available
