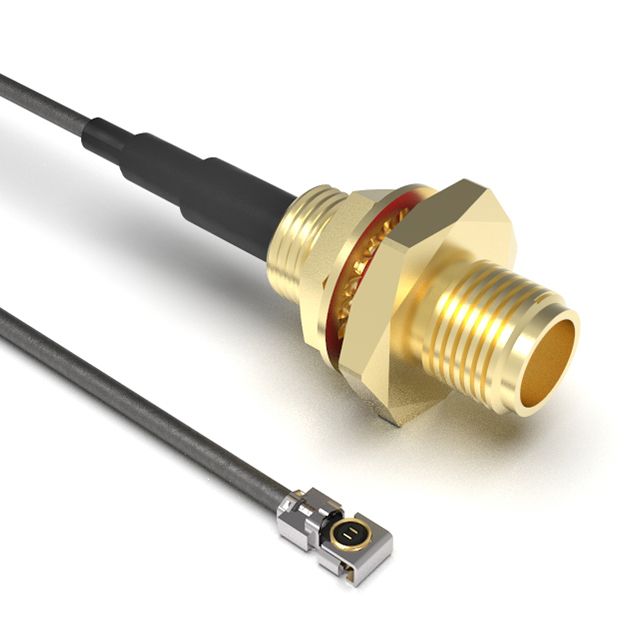

CAB420RF-0200-A-1

Active

GCT

CBL ASSY SMA-MHF4L LK J-P 7.874"

Search across all available documentation for this part.

Active

GCT

CBL ASSY SMA-MHF4L LK J-P 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CAB420RF-0200-A-1

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Rear Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	IPEX MHF4L LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type [diameter]	1.37 mm
Color	Black
Features	IP Rated Unmated
Frequency - Max [Max]	3 GHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to IPEX MHF4L LK

CBL ASSY SMA-MHF4L LK J-P 7.874"

Part	2nd Contact Gender	Length	Length	Cable Type [diameter]	Style	2nd Connector Mounting Type	1st Connector	1st Contact Gender	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Cable Impedance	Color	1st Connector Mounting Feature	Features	1st Connector Mounting Type	Ingress Protection	Overall Impedance
GCT CAB420RF-0200-A-1	Female	7.874 in	200 mm	1.37 mm	SMA to IPEX MHF4L LK	Free Hanging (In-Line)	SMA Jack	Female	IPEX MHF4L LK (Locking) Plug, Right Angle	85 °C	-40 °C	3 GHz	50 Ohms	Black	Bulkhead - Rear Side Nut	IP Rated Unmated	Panel Mount	IP67/IP68 - Dust Tight, Waterproof	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 8.59

General part information

Cable Assembly Coaxial SMA to IPEX MHF4L LK 1.37mm OD Coaxial Cable 7.874" (200.00mm)
