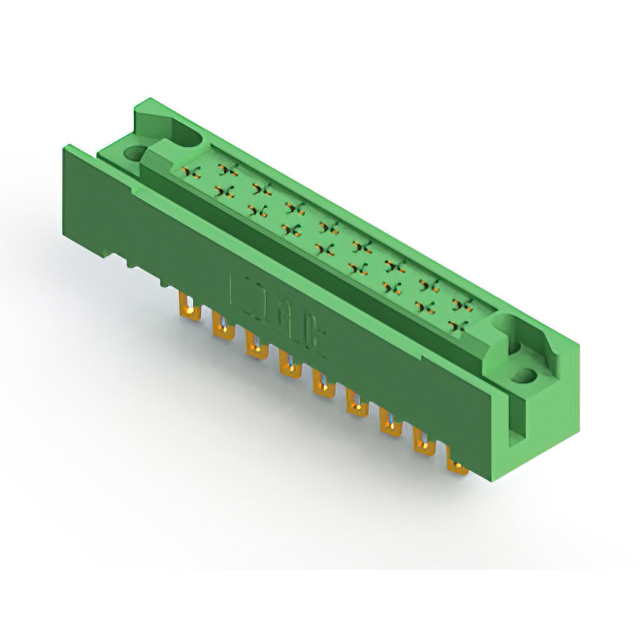

424-017-500-122

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

424-017-500-122

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	424-017-500-122

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder Eyelet(s)
Termination Rows	2

424-017 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Card Type	Termination	Mounting Type	Termination Rows	Pitch [x]	Pitch [x]	Contact Material	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Material - Insulation
EDAC Inc. 424-017-540-112	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Wire Wrap	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.062 in	1.57 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-522-122	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Solder	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.093 in	2.36 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-502-122	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Solder	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.093 in	2.36 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-502-112	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Solder	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.062 in	1.57 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-500-122	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Solder Eyelet(s)	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.093 in	2.36 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-524-112	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Solder	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.062 in	1.57 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-017-542-122	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Wire Wrap	Panel Mount Through Hole	2	0.2 in	5.08 mm	Copper Alloy	0.093 in	2.36 mm	125 °C	-65 ░C	Green	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 23.93
Newark	Each	1	$ 26.92
		100	$ 19.46
		250	$ 16.46
		500	$ 11.82
		1000	$ 10.39

Description

General part information

424-017 Series

17 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
