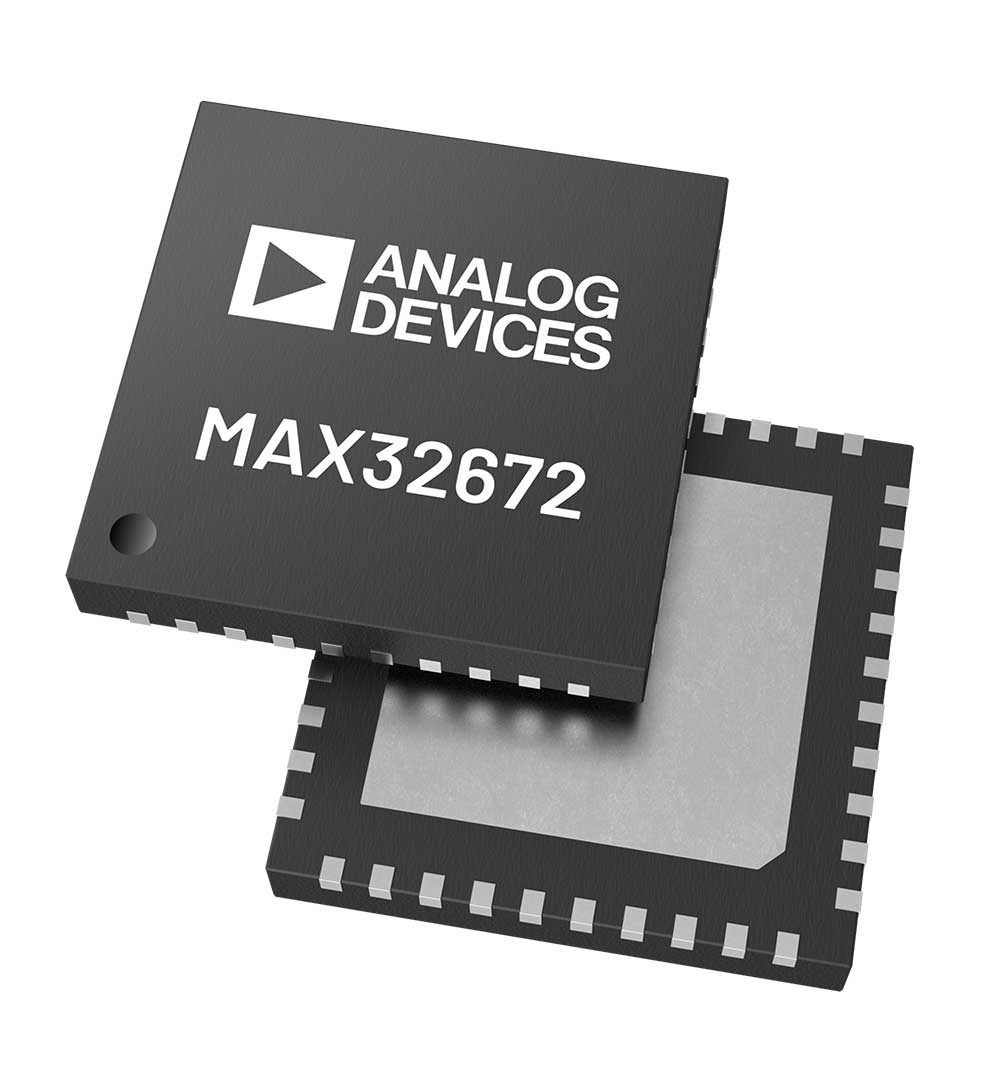

MAX32672GTNBL+

Active

Analog Devices Inc./Maxim Integrated

HIGH-RELIABILITY, TINY, ULTRA-LOW-POWER ARM CORTEX-M4F MICROCONTROLLER WITH 12-BIT 1MSPS ADC

Find alt

Alpha

MAX32672GTNBL+

Active

Analog Devices Inc./Maxim Integrated

HIGH-RELIABILITY, TINY, ULTRA-LOW-POWER ARM CORTEX-M4F MICROCONTROLLER WITH 12-BIT 1MSPS ADC

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MAX32672 Series

In the DARWIN family, the MAX32672 is an ultra-low-power, cost-effective, highly integrated, and highly reliable 32-bit microcontroller enabling designs with complex sensor processing without compromising battery life. It combines a flexible and versatile power management unit with the powerful Arm®Cortex®-M4 processor with a floating-point unit (FPU). The MAX32672 also offers legacy designs an easy and cost-optimal upgrade path from 8- or16-bit microcontrollers.The device integrates 1MB of flash and 200KB of SRAM to accommodate application and sensor code. Error correction coding (ECC) is implemented on the entire flash, RAM, and cache to ensure extremely reliable code execution even in the harshest of environments. Brownout detection ensures proper operation during power-down and power-up events and unexpected supply transients. The flash is organized into two equal-size physical banks to allow execute-while-write and facilitate "live upgrades."Multiple high-speed peripherals such as 3.4MHz I2C, 50MHz SPI, and UART are included to maximize communication bandwidth. In addition, a low-power UART (LPUART) is available for operation in the lowest power sleep modes to facilitate wake-up activity without any loss of data. A total of six timers with I/O capability are provided, including two low-power timers to enable pulse counting, capture/compare, and pulse-width modulation (PWM) generation, even in the lowest power sleep modes. An incremental/quadrature encoder interface with multiple diagnostics is included specifically for motor control applications. A 1Msps, 12-channel, 12-bit successive approximation register (SAR) ADC is integrated for the digitization of analog sensor signals or other analog measurements. Two low-power comparators, available in all low-power modes, allow energy-efficient monitoring and wake-up on external analog signals. An Elliptic Curve Digital Signature Algorithm (ECDSA)-based cryptographic secure bootloader is available in ROM. The device is available in a 40-pin TQFN-EP, 56-pin TQFN, and a 64-pin eWLB.ApplicationsBattery-Powered Medical DevicesMotion/Motor Control, Industrial SensorsOptical Communication Modules, Secure Radio Modem Controller

Technical Specifications

Parameters and characteristics for this part

Specification	MAX32672GTNBL+

A/D Channels	12 count
A/D Resolution (bits)	12 bit
Connectivity	SPI, USART, I2C, UART, FIFO
Converter Architecture	SAR
Core Processor	ARM® Cortex®-M4F
Core Size (Bit Width)	32 Bit
Mounting Type	Surface Mount
Number of I/O	42, 28
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal, External
Package / Case	56-WFQFN Exposed Pad
Package Length	7 mm
Package Name	56-TQFN
Package Width	7 mm
Peripherals	DMA, Brown-out Detect, AES, POR, TRNG, I2S, PWM, Reset, WDT
Program Memory Depth	1 M
Program Memory Size	1 MB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	160 K
RAM Size Width	8 bit
Speed	100 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.63 V
Voltage - Supply (Vcc/Vdd) Minimum	1.71 V

MAX32672 Series

High-Reliability, Tiny, Ultra-Low-Power Arm Cortex-M4F Microcontroller with 12-Bit 1MSPS ADC

Part	Operating Temperature (Max)	Operating Temperature (Min)	Peripherals	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package / Case	Program Memory Size	Program Memory Width	Program Memory Depth	Mounting Type	Package Width	Package Name	Package Length	Speed	Oscillator Type	Core Processor	A/D Channels	Converter Architecture	A/D Resolution (bits)	Connectivity	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Type	Number of I/O	Board Type	Contents	Type	Utilized IC / Part	Core Configuration	Interconnect System	Platform
Analog Devices Inc./Maxim Integrated MAX32672GTLBL+	105 °C	-40 °C	Brown-out Detect DMA I2S POR PWM Reset WDT	1.71 V	3.63 V	40-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	5 mm	40-TQFN	5 mm	100 MHz	External Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	FIFO I2C SPI UART USART	32 Bit	160 K	8 bit	FLASH	28
Analog Devices Inc./Maxim Integrated MAX32672EVKIT#										Fixed						ARM® Cortex®-M4F										Evaluation Platform	Board Cable LCD	MCU 32-Bit	MAX32672
Analog Devices Inc./Maxim Integrated MAX32672GTL+	105 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1.71 V	3.63 V	40-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	5 mm	40-TQFN	5 mm	100 MHz	Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	4 I2C SPI UART USART Wire	32 Bit	160 K	8 bit	FLASH	28					Single-Core
Analog Devices Inc./Maxim Integrated MAX32672GTNBL+T	105 °C	-40 °C	AES Brown-out Detect DMA I2S POR PWM Reset TRNG WDT	1.71 V	3.63 V	56-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	7 mm	56-TQFN	7 mm	100 MHz	External Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	FIFO I2C SPI UART USART	32 Bit	160 K	8 bit	FLASH	28 42
Analog Devices Inc./Maxim Integrated MAX32672GTL+T	105 °C	-40 °C	AES Brown-out Detect DMA I2S POR PWM Reset TRNG WDT	1.71 V	3.63 V	40-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	5 mm	40-TQFN	5 mm	100 MHz	External Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	FIFO I2C SPI UART USART	32 Bit	160 K	8 bit	FLASH	28
Analog Devices Inc./Maxim Integrated MAX32672GTNBL+	105 °C	-40 °C	AES Brown-out Detect DMA I2S POR PWM Reset TRNG WDT	1.71 V	3.63 V	56-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	7 mm	56-TQFN	7 mm	100 MHz	External Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	FIFO I2C SPI UART USART	32 Bit	160 K	8 bit	FLASH	28 42
Analog Devices Inc./Maxim Integrated MAX32672GTLBL+T	105 °C	-40 °C	AES Brown-out Detect DMA I2S POR PWM Reset TRNG WDT	1.71 V	3.63 V	40-WFQFN Exposed Pad	1 MB	8 bit	1 M	Surface Mount	5 mm	40-TQFN	5 mm	100 MHz	External Internal	ARM® Cortex®-M4F	12 count	SAR	12 bit	FIFO I2C SPI UART USART	32 Bit	160 K	8 bit	FLASH	28
Analog Devices Inc./Maxim Integrated MAX32672FTHR#										Fixed						ARM® Cortex®-M4F										Evaluation Platform	Board Cable OLED	MCU 32-Bit	MAX32672		Feather	Feather

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MAX32672: REVA1 Errata Sheet (Rev 1)

MAX32672: High-Reliability, Tiny, Ultra-Low-Power Arm Cortex-M4F Microcontroller with 12-Bit 1MSPS ADC Data Sheet (Rev.4)

MAX32672: REVB2 Errata Sheet (Rev 0)

UG-7558: MAX32672 User Guide (Rev.2)

Package Drawing - 56-LFCSP-7X7X0.75
