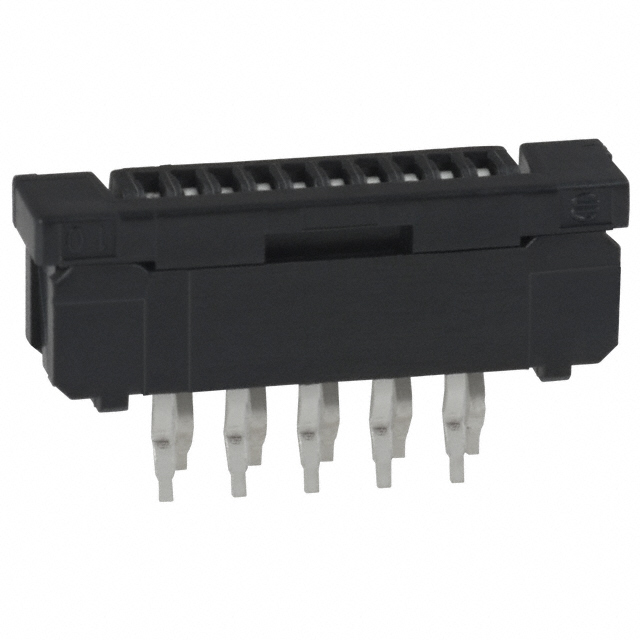

Specification	SLW10S-1C7LF

Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Connector/Contact Type	Contacts, 1 Sided, Vertical
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating	1 A
Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.217 in
Housing Color	Black
Housing Material	Nylon, Polyamide, Glass Filled, PA
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.039 in
Termination	Kinked Pin
Voltage Rating	100 VAC

SLW10 Series

Part	Contact Material	FFC, FCB Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Height Above Board	Cable End Type	Termination	Connector/Contact Type	Features	Mounting Type	Housing Material	Material Flammability Rating	Contact Finish	Number of Positions	Flat Flex Type	Actuator Material	Voltage Rating	Pitch	Locking Feature	Mating Cycles	Housing Color	Current Rating	Actuator Color
Amphenol ICC (FCI) SLW10R-5C7LF	Phosphor Bronze	0.3 mm	-55 °C	85 °C	0.157 in	Tapered	Kinked Pin	Bottom Contacts	Zero Insertion Force (ZIF)	Right Angle Through Hole	Glass Filled Nylon PA Polyamide	UL94 V-0	Tin	10	CIC	Glass Filled Nylon Polyamide (PA)	100 VAC	0.039 in	Slide Lock	20 cycles	Black	1 A	White
Amphenol ICC (FCI) SLW10S-1C7LF	Phosphor Bronze	0.33 mm	-55 °C	85 °C	0.217 in		Kinked Pin	1 Sided Contacts Vertical	Zero Insertion Force (ZIF)	Through Hole	Glass Filled Nylon PA Polyamide	UL94 V-0	Tin	10	FFC FPC	Glass Filled Nylon Polyamide (PA)	100 VAC	0.039 in	Slide Lock	20 cycles	Black	1 A
Amphenol ICC (FCI) SLW10R-1C7LF	Phosphor Bronze	0.3 mm	-55 °C	85 °C	0.157 in	Notched Tabbed	Solder	Bottom Contacts	Solder Retention Zero Insertion Force (ZIF)	Right Angle Through Hole	Glass Filled Nylon PA Polyamide	UL94 V-0	Tin	10	FFC FPC	Glass Filled Nylon Polyamide (PA)	100 VAC	0.039 in	Flip Lock	20 cycles	Black	1 A	Black
