NT-42B1-0484

Obsolete

Lighting Science Group Corporation

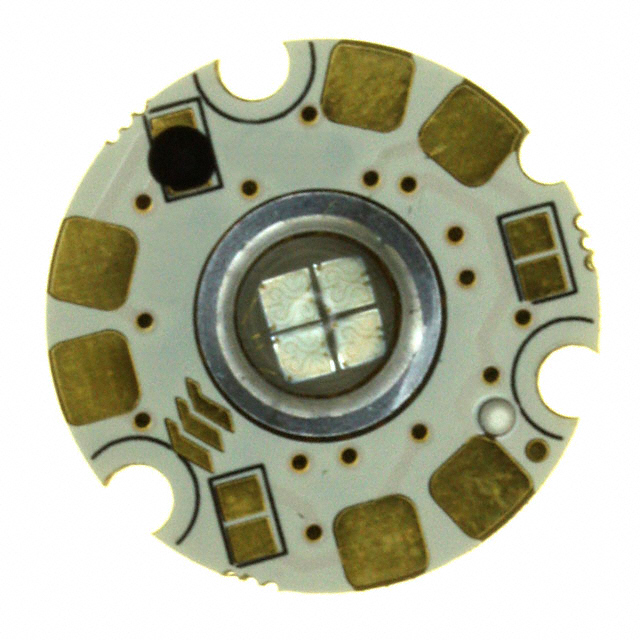

LED MOD ATLAS BLUE ROUND

Search across all available documentation for this part.

Obsolete

Lighting Science Group Corporation

LED MOD ATLAS BLUE ROUND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NT-42B1-0484	NT-42 Series

CCT (K)	-	5000 K
Color	Blue	Blue, Cool, White
Configuration	Round	Round
CRI (Color Rendering Index)	-	60
Current - Max	-	1.05 A
Height [z]	4.32 mm	4.32 mm
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	45 lm/W	45 - 46 lm/W
Luminous Flux @ Current/Temperature	216 lm	216 - 244 lm
Size / Dimension [diameter]	0.8 in	0.8 in
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6.9 V	6.9 - 7.6 V
Wavelength	465 nm	465 nm

LED MOD ATLAS BLUE ROUND

Part	Lens Type	Viewing Angle	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Wavelength	Configuration	Height [z]	Color	Type	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)
Lighting Science Group Corporation NT-42B1-0484	Domed	120 °	45 lm/W	216 lm	465 nm	Round	4.32 mm	Blue	LED Module	0.8 in	6.9 V
Lighting Science Group Corporation NT-42D0-0426	Domed	120 °	46 lm/W	244 lm		Round	4.32 mm	Cool, White	LED Module	0.8 in	7.6 V	5000 K	1.05 A	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Atlas™ Blue Round
