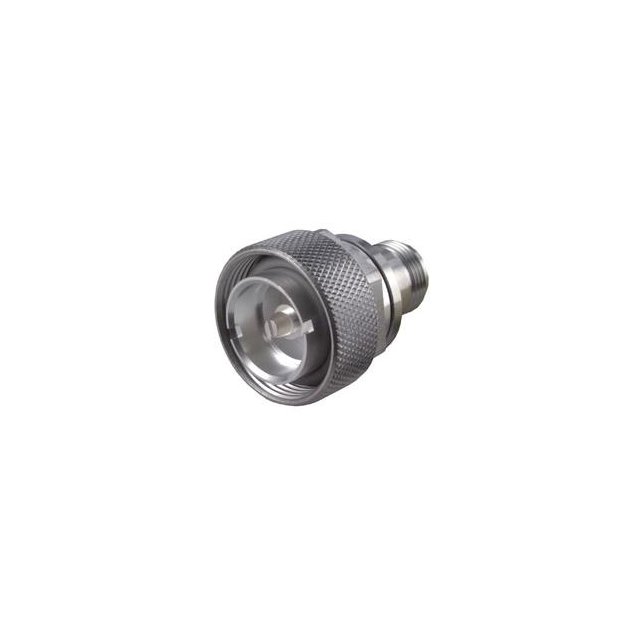

33_716-N-50-1/---_UE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

33_716-N-50-1/---_UE

Technical Specifications

Parameters and characteristics for this part

Specification	33_716-N-50-1/---_UE

Adapter Series	N to 7/16
Adapter Type	Plug to Jack
Body Finish	Silver, White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mating Cycles	Conversion Type	Body Material	Impedance	Dielectric Material	Adapter Series	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Type	Convert To (Adapter End)	Adapter Type	Body Finish	Style	Center Contact Material
Huber+Suhner, Inc. 33_716-N-Q50-4/133_UE	-65 ░C	165 °C	Gold	500	Between Series	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	N to 7/16	Female Socket N Jack	7.5 GHz	Free Hanging (In-Line)	7/16 Plug Male Pin	Plug to Jack	White Bronze	Straight	Beryllium Copper
Huber+Suhner, Inc. 33_716-N-50-1/---_UE	-65 ░C	165 °C	Silver	500	Between Series	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	N to 7/16	Female Socket N Jack	7.5 GHz	Free Hanging (In-Line)	7/16 Plug Male Pin	Plug to Jack	Silver White Bronze	Straight	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
