629-11W1250-4NE

Active

EDAC Inc.

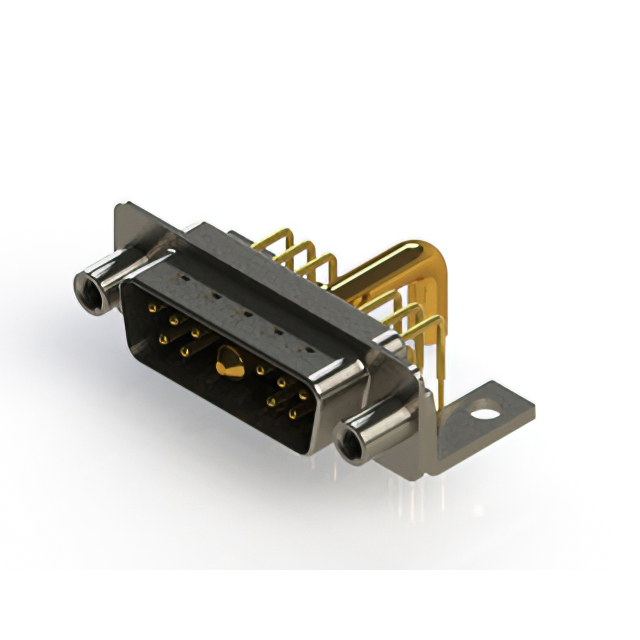

CONN D-SUB PLUG 11POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-11W1250-4NE

Active

EDAC Inc.

CONN D-SUB PLUG 11POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-11W1250-4NE

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

629-11W Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Connector Type	Backset Spacing	Backset Spacing	Features	Dielectric Material	Color	Voltage Rating	Connector Style	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Contact Type	Contact Material	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Flange Feature	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 629-11W1650-4ND	0.76 Ám	30 Áin	UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 40 A	10	1	11	M3
EDAC Inc. 629-11W1640-4NE	0.76 Ám	30 Áin	UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 40 A	10	1	11	M3
EDAC Inc. 629-11W1250-4NE			UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 40 A	10	1	11	M3	Flash
EDAC Inc. 629-11W1240-1T2			UL94 V-0	Male Pins Plug	9.4 mm	0.37 in		Polyester Thermoplastic	Black	125 VDC	Combo D-Sub		-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy		10	1	11	Housing/Shell (4-40)	Flash	10A 5A
EDAC Inc. 629-11W1640-5T1	0.76 Ám	30 Áin	UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Grounding Indents Shielded	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub		-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Coax Signal	Copper Alloy		10			Housing/Shell (Unthreaded)			11	1
EDAC Inc. 629-11W1240-2T2			UL94 V-0	Male Pins Plug	9.4 mm	0.37 in		Polyester Thermoplastic	Black	125 VDC	Combo D-Sub		-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 20 A	10	1	11	Housing/Shell (4-40)	Flash
EDAC Inc. 629-11W1640-7T2	0.76 Ám	30 Áin	UL94 V-0	Male Pins Plug	9.4 mm	0.37 in		Polyester Thermoplastic	Black	125 VDC	Combo D-Sub		-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Coax Signal	Copper Alloy		10			Housing/Shell (4-40)			11	1
EDAC Inc. 629-11W1240-2NB			UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 20 A	10	1	11	Housing/Shell (M3)	Flash
EDAC Inc. 629-11W1240-3N4			UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Signal and Power	Copper Alloy	5 A 30 A	10	1	11	Housing/Shell (4-40)	Flash
EDAC Inc. 629-11W1640-7T4	0.76 Ám	30 Áin	UL94 V-0	Male Pins Plug	9.4 mm	0.37 in	Grounding Indents Mounting Brackets	Polyester Thermoplastic	Black	125 VDC	Combo D-Sub		-55 °C	125 °C	2	Through Hole Right Angle	Gold	11C1 11W1	2	Solder	Coax Signal	Copper Alloy		10			Housing/Shell (4-40)			11	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.00

Description

General part information

629-11W Series

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
