31-2226

Active

Amphenol RF

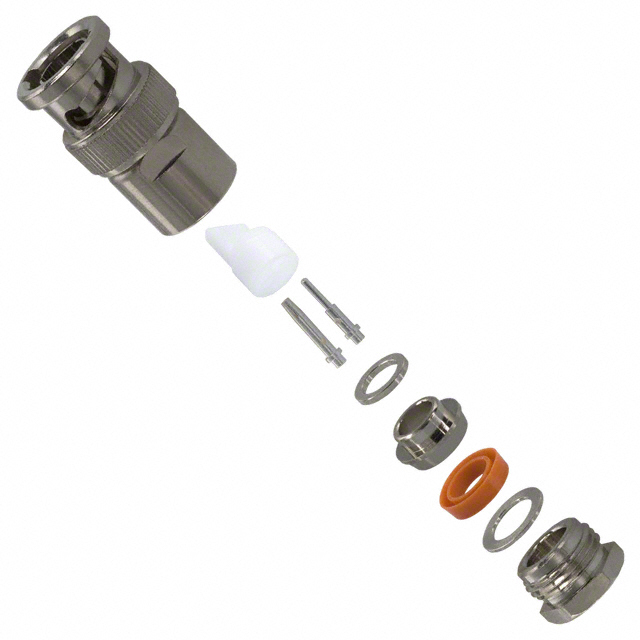

CONN TWINAX PLUG STR 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN TWINAX PLUG STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-2226

Body Finish	Nickel
Body Material	Brass
Cable Group	108A, RG-108
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC, Twinaxial
Connector Type	Male Pin, Female Socket, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Gasket, 2 Washers, 1 Braid Clamp, 1 Clamp, 2 Insulators, 2 Contacts, 1 Connector
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Body Material	Body Finish	Housing Color	Ingress Protection	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Number of Ports	Mounting Type	Includes	Mating Cycles	Shield Termination	Center Contact Plating	Cable Group	Dielectric Material	Frequency - Max [Max]	Contact Termination	Connector Style	Fastening Type
Amphenol RF 31-2226	Brass	Nickel	Silver	Weatherproof	50 Ohms	-65 ░C	165 °C	Female Socket Male Pin Plug	Beryllium Copper Brass	1	Free Hanging (In-Line)	1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 2 Contacts 2 Insulators 2 Washers	500	Clamp	Silver	108A RG-108	Polytetrafluoroethylene (PTFE)	4 GHz	Solder	BNC Twinaxial	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Twinaxial Connector Plug, Female Socket and Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources
