5-1437710-6
ActiveTE Connectivity Raychem Cable Protection
NP1TA-00R2XX=CONN. 2W MALE WAT
Deep-Dive with AI
Search across all available documentation for this part.
5-1437710-6
ActiveTE Connectivity Raychem Cable Protection
NP1TA-00R2XX=CONN. 2W MALE WAT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1437710-6 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.68 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.06 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.70 | |||
Description
General part information
1437710 Series

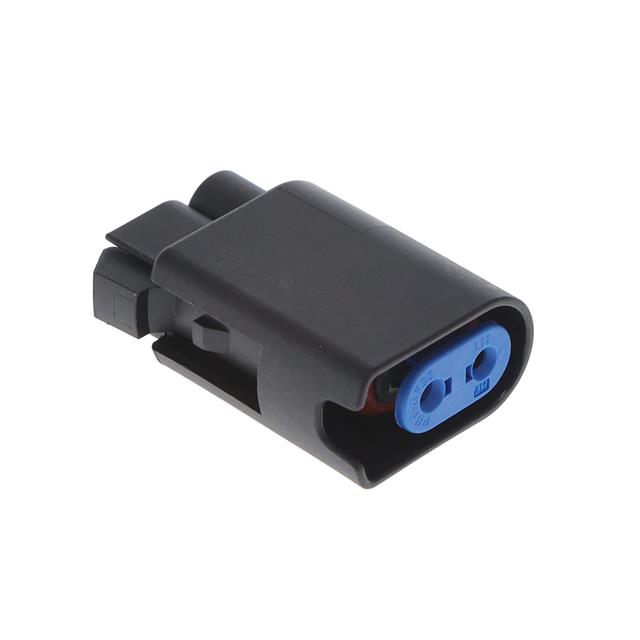

2 Position Housing, Housing for Male Terminals, Wire-to-Wire, 6.5 mm [.255 in] Centerline, Sealable, Black, Wire & Cable, Power
